Product Description
-
Induction
NML series inverter is a very economical pure sine wave inverter, with built-in MPPT solar charger 80A and AC charger 80A, Solar/AC priority is configurable. It with selectable input voltage range for home appliances and personal computers.
Main Features
*Inverter 2000VA/1600W
*Pure sine wave solar inverter
*90~280Vac wide AC input range
*Wide PV input range (30V~400VDC)
*Built-in Max 80A MPPT solar charger
*Max PV power 2000W
*WiFi monitor available for IOS and android
*Smart battery charge design to optimize battery life
*Compatible with lithium battery
Datasheet
Model
NML-2000-12
RATED POWER
2000VA/1600W
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
1600W
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
4000VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
5s@＞150% loads,10s@115%~150% loads
Maximum Conversion Efficiency (PV to inv)
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
12Vdc
Floating Charging Voltage (Adjustable)
13.5Vdc
Overcharge Protection (Adjustable)
16Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
400Vdc
Max. PV Array Power
2000W
MPPT Tracking Range
30~400Vdc
Recommend PV Voltage
240Vdc
Max. PV Charging Current
80A
Max. AC Charging Current
60A
Max. Charge Current (PV+AC)
80A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication Interface
RS232
Dimension, D x W x H (mm)
95*273*357
Net Weight(kg)
4.4

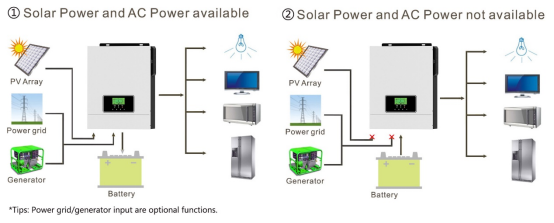

System Diagram
This series of 2kva inverter is compatible with solar panel input, battery input, AC grid input, and generator input, providing stable and clean energy to ensure uninterrupted power supply to users.
Application
FAQ
Q: What’s the payment term of this 2kva inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 2000va inverter pure sine wave output?
A: Yes, it is 2000va 1600w true pure sine wave inverter
Q: What is the delivery time of this 1.6kw solar inverter?
A: 1.6kw Inverter in stock. Can delivery immediately.
Q: What is the shipping way of this 2kva inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 2kva inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
