Product Description
-
Induction
MAX 10KW 10.2KW DC 48V off grid hybrid inverter with low voltage input and 230VAC pure sine wave output. This inverter is designed with Dual PV In-Put. Two independent high-efficiency MPPT solar controller to achieve maximum power point tracking technology, the charge current is up to 150A. This innovative inverter seamlessly integrates solar energy storage, mains charging energy storage, and AC sine wave output.
Main Features
*High Frequency off grid hybrid solar inverter
*Pure sine wave solar inverter
*Built-in max 150A MPPT solar charger
*Real Dual MPPT input
*Max PV voltage 500VDC
*MPPT range 90V~450VDC
*Inverter can work without battery during daytime
*Optional WiFi monitory for IOS and Android
*With dusk-proof kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
*Working status indicate with RGB lights
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
DatasheetModel
MAX-10.2KW
RATED POWER
10KVA/10.2KW
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
10200W
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
20400VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads.
Maximum Conversion Efficiency
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
48Vdc
Constant Charging Voltage (Adjustable)
56.4VDC
Floating Charging Voltage (Adjustable)
54Vdc
Overcharge Protection (Adjustable)
63Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
500Vdc
Max. PV Array Power
2*5500W (Dual MPPT)
Max PV Input Current & Number
27A*2
MPPT Tracking Range
90~500Vdc
Recommend PV Voltage
300~400Vdc
Max. PV Charging Current
150A
Max. AC Charging Current
150A
Max. Charge Current (PV+AC)
150A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication function
Yes, Can Communicate with Lithium Battery BMS
Communication Interface
RS485/RS232/Dry Contact
Dimension, D x W x H (mm)
148*433*554
Net Weight(kg)
17.3

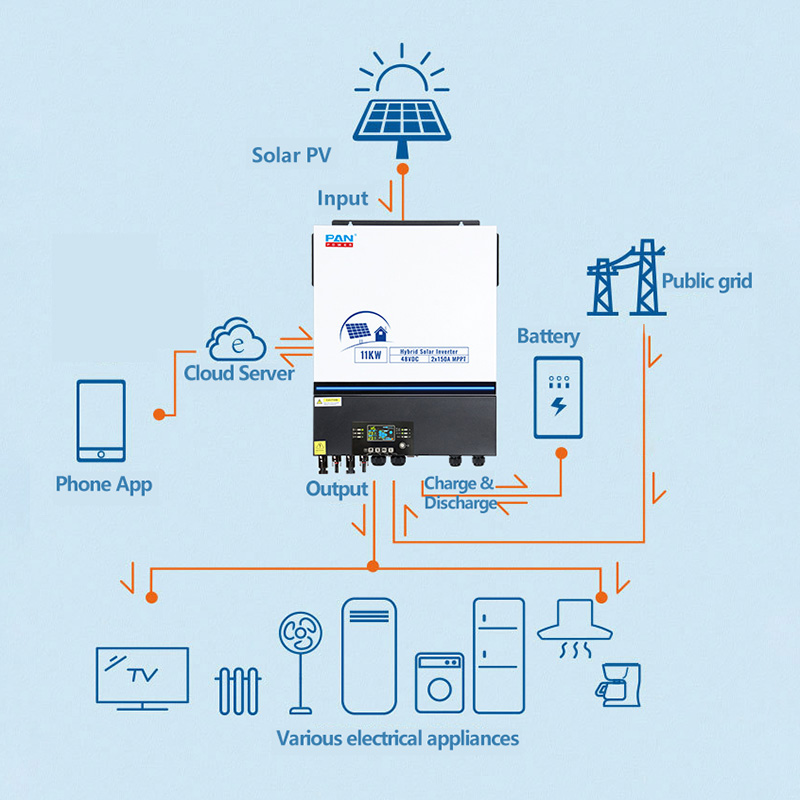

System DiagramThis series single phase 10kw solar inverter is 3 in 1 design, Power Inverter+MPPT controller+Grid Charger, which can also work without battery during daytime. User can monitor the solar system working status via phone APP. Our Off-Grid Solar Inverter with MPPT Charge Controller is your reliable and sustainable energy companion.
ApplicationThis series of high power single phase 10kw off grid hybrid inverters are widely used in villas, apartments, small factories, farms and other scenarios.
FAQQ: What’s the payment term of this 10kw off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Is this a 10kw pure sine wave inverter?
A: Yes,10000w inverter output pure sine wave power.Q: Is this 10kw off grid hybrid solar inverter?
A: Yes, 10kw off grid inverter compatible with mains and generator input.
Q: What is the delivery time of this 10kw solar inverter?
A: Large inventory 10kw solar inverter fast delivery.
Q: What is the shipping way of this 10kw inverter?
A: By Air, by Sea or by Express.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
*High Frequency off grid hybrid solar inverter
*Pure sine wave solar inverter
*Built-in max 150A MPPT solar charger
*Real Dual MPPT input
*Max PV voltage 500VDC
*MPPT range 90V~450VDC
*Inverter can work without battery during daytime
*Optional WiFi monitory for IOS and Android
*With dusk-proof kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
*Working status indicate with RGB lights
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
-
This series single phase 10kw solar inverter is 3 in 1 design, Power Inverter+MPPT controller+Grid Charger, which can also work without battery during daytime. User can monitor the solar system working status via phone APP. Our Off-Grid Solar Inverter with MPPT Charge Controller is your reliable and sustainable energy companion.
-
This series of high power single phase 10kw off grid hybrid inverters are widely used in villas, apartments, small factories, farms and other scenarios.
-
Q: What’s the payment term of this 10kw off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Is this a 10kw pure sine wave inverter?
A: Yes,10000w inverter output pure sine wave power.Q: Is this 10kw off grid hybrid solar inverter?
A: Yes, 10kw off grid inverter compatible with mains and generator input.
Q: What is the delivery time of this 10kw solar inverter?
A: Large inventory 10kw solar inverter fast delivery.
Q: What is the shipping way of this 10kw inverter?
A: By Air, by Sea or by Express.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
