Product Description
-
Induction
PANPOWER Off-Grid Solar Inverter 6kW 48VDC is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.
The WiFi module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
This 6.2kw inverter can work with or without batteries, only use PV power to power home appliances.
Main Features
*Pure sine wave solar inverter
*Built-in max 120A MPPT solar charger
*Max PV voltage 500VDC
*MPPT range 60V~450VDC
*Inverter can run without battery
*One-key restoration to factory setting
*Optional WiFi for IOS and Android
*Built-in anti-dusk kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
DatasheetMODEL
ECO-6.2KW
Phase
1—phase
Maximum Conversion Efficiency (DC/AC)
98%
TWO LOAD OUTPUT POWER
Full Load
6200W
Maximum Main Load
6200W
Maximum Second Load (battery mode)
2066W
Main Load Cut Off Voltage
52VDC
Main Load Return Voltage
54VDC
AC INPUT
Acceptable Input Voltage Range
90~280VAC or 170~280VAC
Maximum AC Input Current
40A
50A
Nominal operating frequency
50/60Hz
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
240VDC/500VDC
PV input voltage range
60~450VDC
Full load MPPT range
240V~450VDC
Number of MPPT Tracker / Imax PV
1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER
Battery Type
Lead acid/Gel/Lithium
Nominal DC Voltage
48VDC
Maximum Charging Current (Solar to AC)
120A
Maximum AC Charging Current
100A
GENERAL
Dimension, D*W*H (MM)
420*350*145
420*310*110
500*400*140
500*400*140
Net Weight(KGS)
9
Communication Interface
RS232/RS485
Operating Temperature
-10~50℃
Humidity
5%~95% non-condensing
Class of Protection
IP20

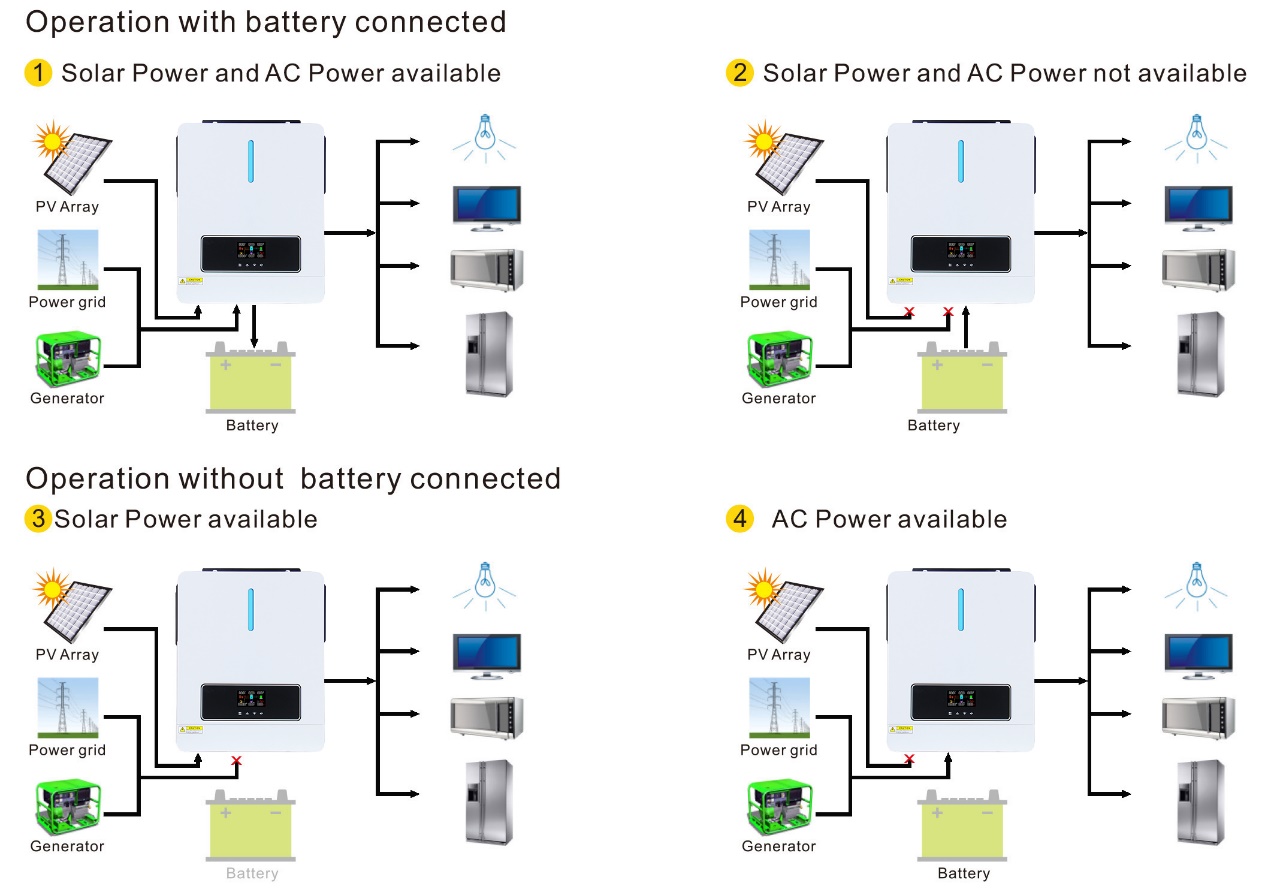

System Diagram
It is a 6KW off grid home energy storage inverter, can work with or without batteries, suitable for home off grid solar system.Pan Power
Application
This series 6000w off-grid inverters are widely used in household off grid solar system around the world. The 6kw solar system provides users with efficient and stable clean energy.
FAQQ: What’s the payment term of this 6kw inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6kw inverter pure sine wave output?
A: Yes, 6000w true pure sine wave inverter.Q: Is this 6000w off grid inverter?
A: Yes, 6000w off grid inverter, can also work with AC input for backup.Q: What is the delivery time of this 6.2kw solar inverter?
A: 6.2kw Inverter in stock, fast delivery.Q: What is the shipping way of this 6000w inverter?
A: By Air, by Sea or by Express.Q: How to solve the technical problem of this 6000w inverter?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
*Pure sine wave solar inverter
*Built-in max 120A MPPT solar charger
*Max PV voltage 500VDC
*MPPT range 60V~450VDC
*Inverter can run without battery
*One-key restoration to factory setting
*Optional WiFi for IOS and Android
*Built-in anti-dusk kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
-
It is a 6KW off grid home energy storage inverter, can work with or without batteries, suitable for home off grid solar system.
-
This series 6000w off-grid inverters are widely used in household off grid solar system around the world. The 6kw solar system provides users with efficient and stable clean energy.
-
Q: What’s the payment term of this 6kw inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6kw inverter pure sine wave output?
A: Yes, 6000w true pure sine wave inverter.Q: Is this 6000w off grid inverter?
A: Yes, 6000w off grid inverter, can also work with AC input for backup.
Q: What is the delivery time of this 6.2kw solar inverter?
A: 6.2kw Inverter in stock, fast delivery.
Q: What is the shipping way of this 6000w inverter?
A: By Air, by Sea or by Express.
Q: How to solve the technical problem of this 6000w inverter?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
