Product Description
-
Induction
MAX sereis 11kw hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. Built-in Two MPPT 11kW Hybrid Off Grid Solar Inverter, the 11kW inverter is with max 6 units parallel function, support single phase parallel up to be 66KW, also supply 3-phase parallel.
Main Features
*High Frequency off grid hybrid solar inverter
*Pure sine wave solar inverter
*Built-in max 150A MPPT solar charger
*Real Dual MPPT input
*Max PV voltage 500VDC
*MPPT range 90V~450VDC
*Inverter can work without battery during daytime
*Optional WiFi monitory for IOS and Android
*With dusk-proof kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*11KW inverter with parallel, max up to 6 units
*With dual output
*Working status indicate with RGB lights
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
Model
MAX-11KW
RATED POWER
11KVA/11KW
Parallel Function
Yes, up to 6 units
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
11000W
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
22000VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads.
Maximum Conversion Efficiency
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
48Vdc
Constant Charging Voltage (Adjustable)
56.4VDC
Floating Charging Voltage (Adjustable)
54Vdc
Overcharge Protection (Adjustable)
63Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
500Vdc
Max. PV Array Power
2*5500W (Dual MPPT)
Max PV Input Current & Number
27A*2
MPPT Tracking Range
90~500Vdc
Recommend PV Voltage
300~400Vdc
Max. PV Charging Current
150A
Max. AC Charging Current
150A
Max. Charge Current (PV+AC)
150A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication function
Yes, Can Communicate with Lithium Battery BMS
Communication Interface
RS485/RS232/Dry Contact
Dimension, D x W x H (mm)
148*433*554
Net Weight(kg)
18.4

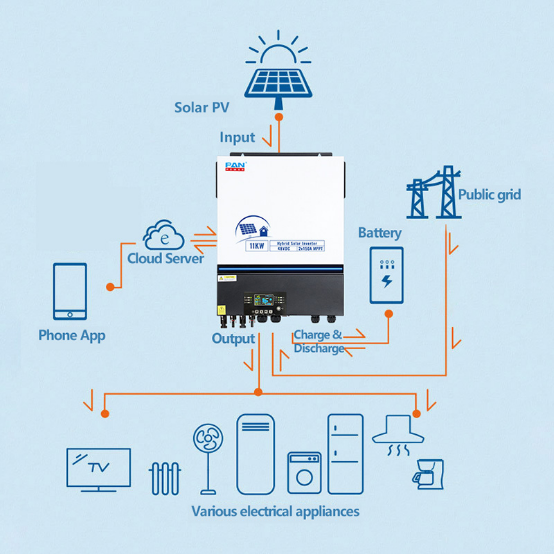

System Diagram
The largest single-phase off grid inverter in the market. 11000W PV Input and 11000W AC pure sine wave output. Compatible with lead-acid, GEL, Lithium Ion and LifePO4 batteries. A high-performance off-grid inverter 11kw for off grid solar system.
Application
This series of high power 11kw inverters are widely used in villas, apartments, small factories, farms and other scenarios.

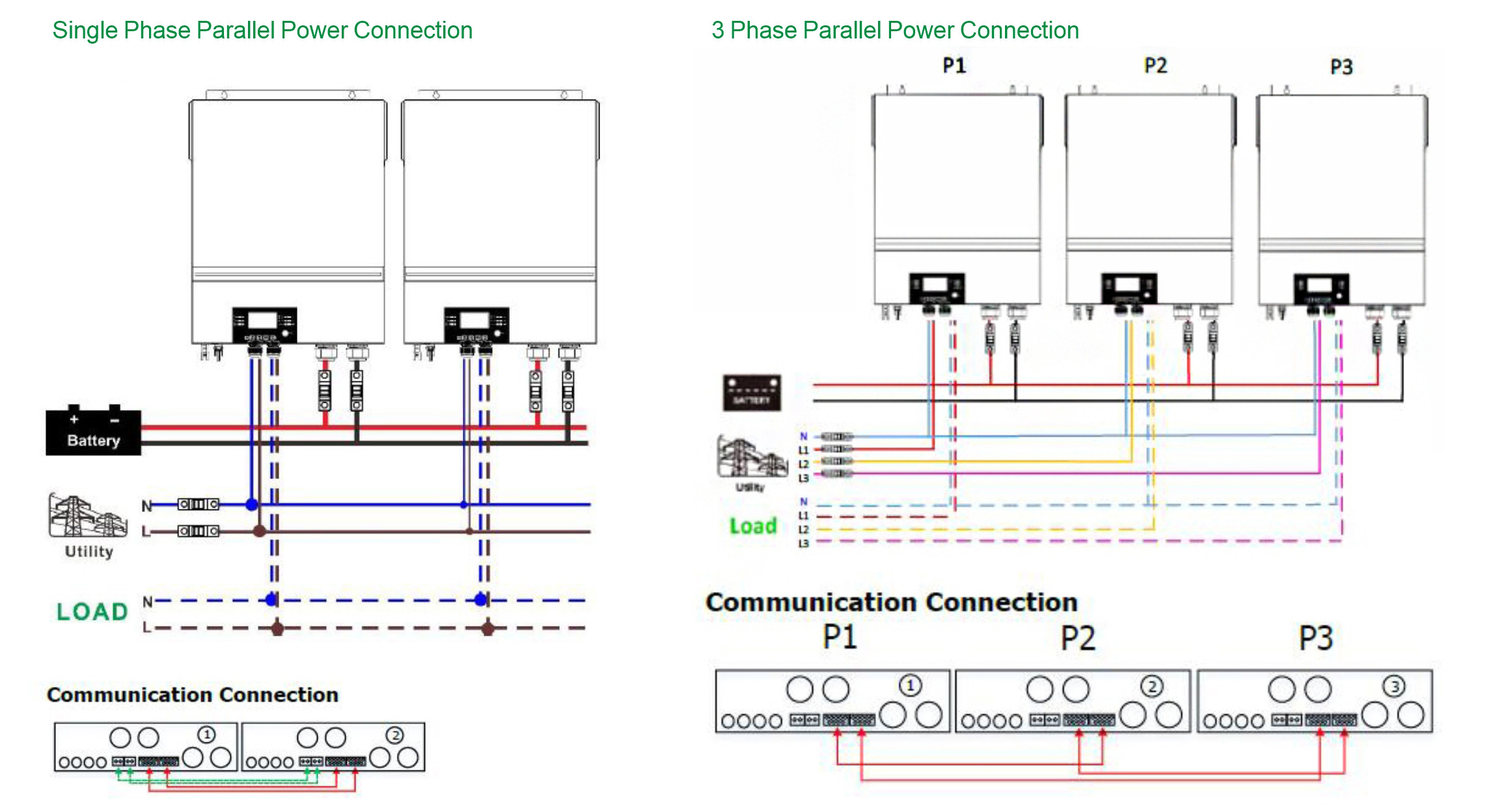

Parallel Function
In actual solar system applications, 11kW inverter supports single-phase parallel operation up to 66KW, and 11kW inverter also supports three-phase parallel operation.
FAQ
Q: What’s the payment term of this 11kw inverter?
A: T/T, Western Union, Paypal, L/C.Q: Are your 11kw inverter pure sine wave output?
A: Yes,11000w pure sine wave inverter.Q: Is this 11kw off grid inverter?
A: Yes, 11kw off grid inverter compatible with mains and generator input.Q: What is the delivery time of this 11kw solar inverter?
A: Large inventory 11kw solar inverter fast delivery.Q: What is the shipping way of this 11kw inverter?
A: By Air, by Sea or by Express.Q: How to solve the technical problem of this 11kw?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
The largest single-phase off grid inverter in the market. 11000W PV Input and 11000W AC pure sine wave output. Compatible with lead-acid, GEL, Lithium Ion and LifePO4 batteries. A high-performance off-grid inverter 11kw for off grid solar system.
