Product Description
-
IP65 50KW Hybrid Solar Inverter with 4 MPPT Tracker
PANPOWER IP65 3 phase mppt hybrid solar inverter 50kw can meet the demands of both residential and commercial applications. This solar inverter 50kw supports multiple operation modes including grid-tied, off-grid, and UPS mode, and support max 10 units in parallel, up to 500KW, allowing users to adapt to various scenarios and power requirements. A 50kw inverter designed for three-phase grid connection, ensuring stable power supply and compatibility with most commercial and industrial electrical systems.
Main Features:
*Wide PV range 150-850VDC
*Max DC input voltage 1000VDC
*High voltage battery, higher efficiency
*Built-in Multiple MPPT tracker
*Colorful touch LCD screen
*IP65 protection degree
*Support max 10 units in parallel
*Support storing energy from diesel generator
*Support AGM/Gel/Lithium battery
*6 Time periods for battery charging/discharging
*With CAN interface for BMS communication
*AC coupling to retrofit existing solar system
*WiFi+APP monitoring mode
*100% unbalanced output，each phase

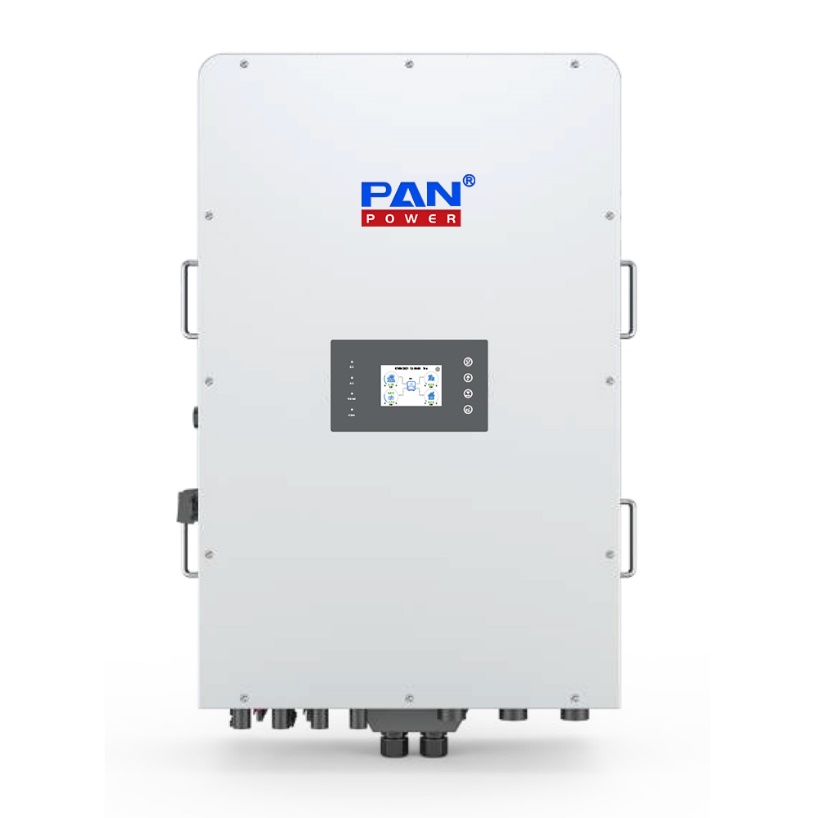

Appearance:

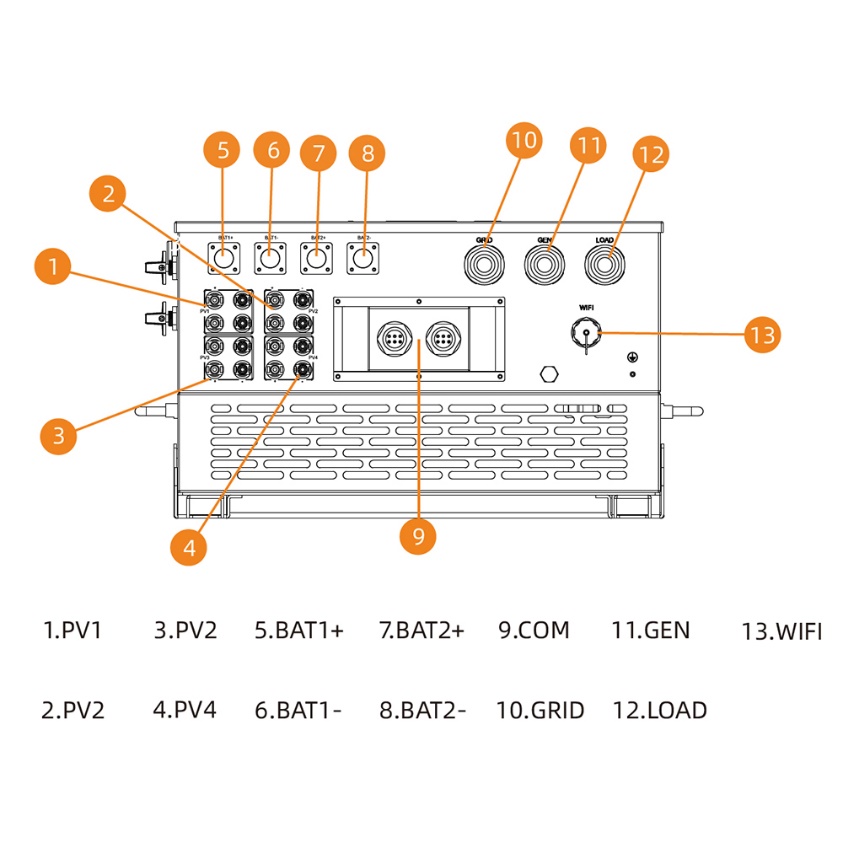

PANPOWER 50kw ip65 inverter is with a touch screen, display data more intuitively and user settings more convenient. User can monitor the inverter working data on the color screen. The design of four independent MPPTS enables this 50kw inverter to maximize the utilization rate of solar energy to 99%.

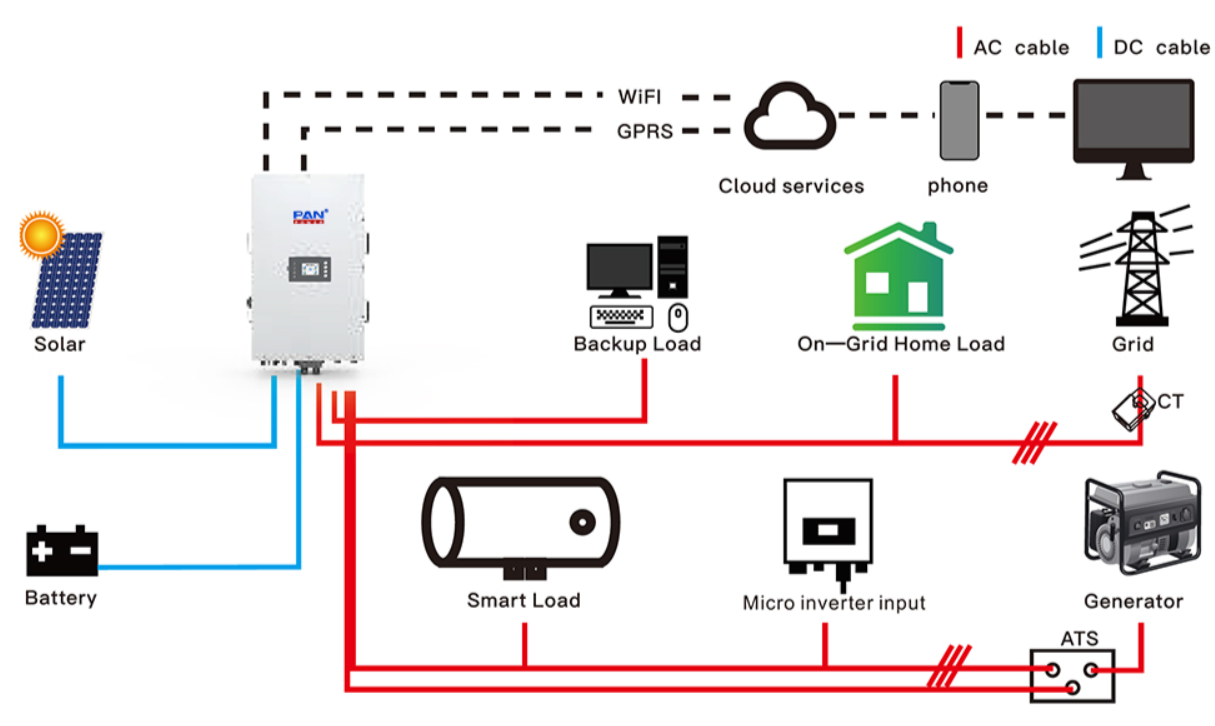

Basic System Diagram:
This 50kw ip65 hybrid inverter is compatibility with multiple power sources, support both mains voltage and generator power, pv power and battery power. which providing versatility in power sourcing and backup solutions.Users can set preferences for power sourcing, PV+AC hybrid working or PV+battery hybrid working.
Technical parameters:
Model 50KW Product Type Hybrid Inverter Battery Battery type Li-ion/Lead-acid/Gel Battery voltage range 200-800VDC Max. charge/discharge current(A) 50/50 Number of battery input 2 Charging Strategy for Li-Ion Battery Self-adaption to BMS Input (PV) Max. PV array input power 65000W Rated PV Input Voltage 600V d.c Start-up Voltage 180V d.c Vmax PV (Max. PV input voltage) 1000V d.c MPPT Voltage Range 150-850V d.c Full power MPPT voltage range 360-850V d.c Max. PV Input Current(A) 36+36+36+36 Max. DC Short Circuit Current (A) 55+55+55+55 Number of MPPT Tracker 4 No. of Strings per MPPT Tracker 2+2+2+2 AC input and AC output AC grid rated voltage 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac AC grid rated frequency 50/60Hz Grid Type Three Phase Rated AC grid output power(W) 50000 Max AC Output Power(W) 55000 AC Input/output rated current(A) 75.8/72.5 Max AC Input/Output Current (A) 83.4/79.8 Max. Three-phase Unbalanced
Output Current(A)
83.3 Max. Continuous AC Passthrough(A) 197 Generator input/smart load/
AC couple current(A)
75.8/197/75.8 Peak Power (off grid) 1.5 time of rated power, 10s Power Factor 0.8 leading to 0.8 lagging Total Harmonic Distortion
(THDi, rated power)
<3% (of nominal power) DC Current Injection <0.5% In General Data Max. Efficiency 99.9% MPPT Efficiency, 97.6% Max Efficiency Protection Anti-islanding Protection, PV String Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output overvoltage protection, Photovoltaic input lightning, Surge Protection (DC Type III / AC Type III) Operating Temperature Range (℃) -40-60℃, > 45℃Derating Cooling Smart Cooling Degree of ingress protection IP65 Noise (dB) ≤65 dB Communication to BMS CAN Monitoring mode Wi-Fi+APP Weight (kg) 84 Size (W x H x D mm) 537×833×295 (Excluding Connectors and Brackets)
Keywords:
50kw IP65 Dual Battery Input 4 MPPT Hybrid Solar Inverter
