Product Description
-

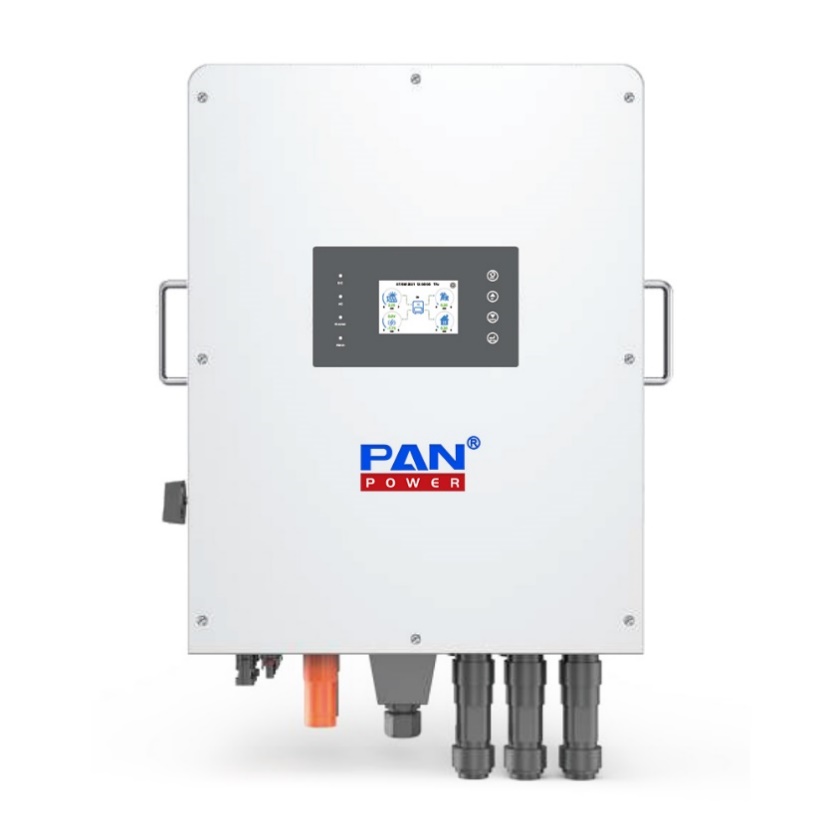

8000W/8KW 3-Phase Hybrid Inverter IP65
Main Features:
*Low DC voltage 40V-60V
*Wide PV range 160V~800V
*Built-in Dual MPPT tracker
*Colorful touch LCD screen
*IP65 protection degree
*Support max 10 units in parallel
*Support storing energy from diesel generator
*Support AGM/Gel/Lithium battery
*6 Time periods for battery charging/discharging
*With RS485/CAN interface for BMS communication
*AC coupling to retrofit existing solar system
*WiFi+APP monitoring mode
*100% three-phase unbalanced output, with each phase capable of delivering up to 50% of the rated power.

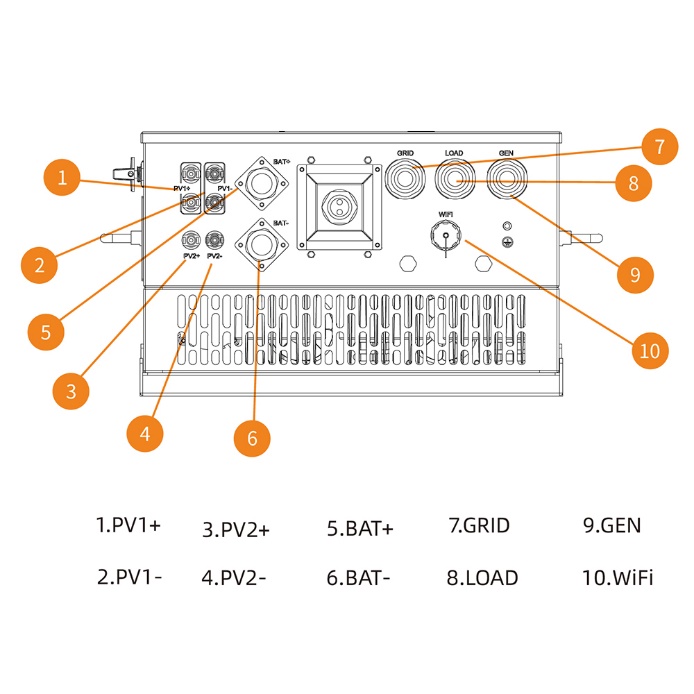

Inverter Details:
This ip65 inverter has two independent MPPTS and supports three PV inputs, maximizing efficiency.

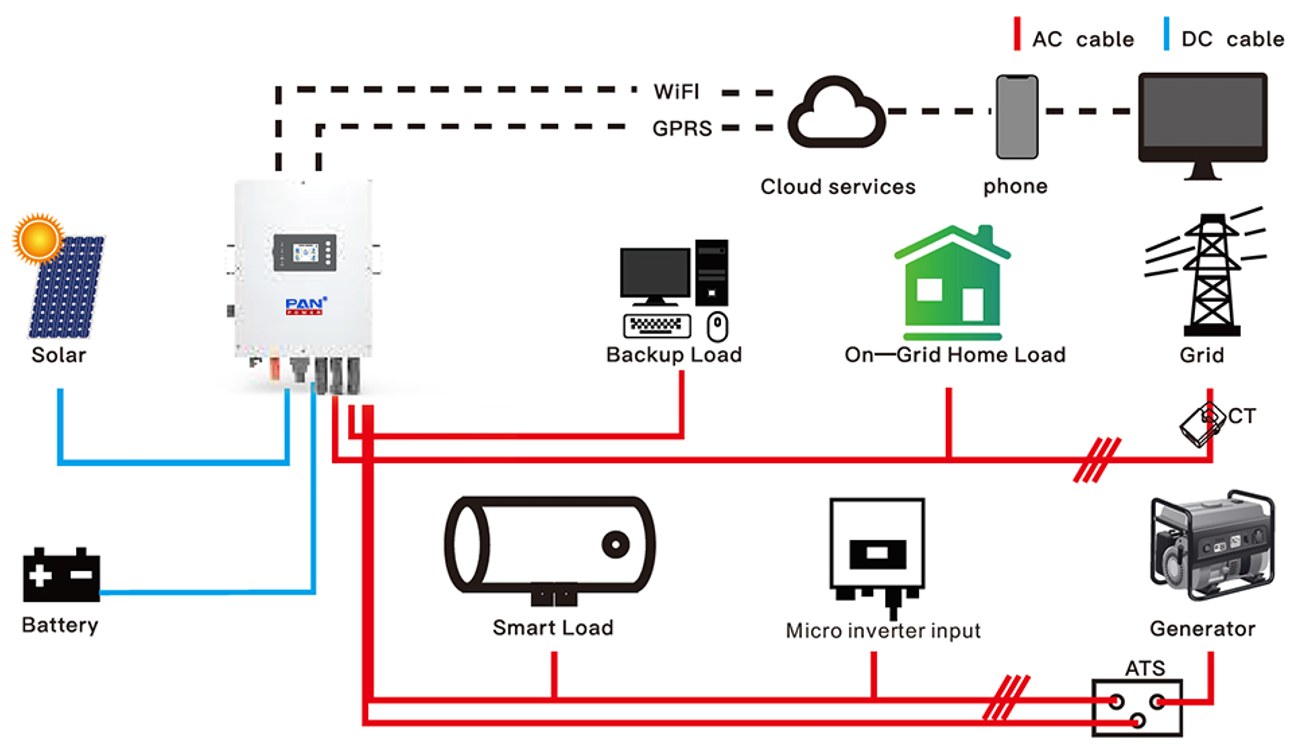

Basic System Diagram:
The Panpower 3 phase ip65 solar energy inverter 8000w is a powerful and reliable solution for solar energy system. It is a inverter with efficiency rating of up to 99%, minimizing energy losses and maximizing the utilization of solar power. Users can freely choose the hybrid working mode, PV+AC or PV+battery. This I65 inverter has CT clamps, current reversal prevention, safer and more universal for various scenarios.
Technical parameters:
Model 8KW Product Type Hybrid Inverter Battery Battery type Li-ion/Lead-acid/Gel Battery voltage range 40-60V DC Max. charge/discharge current 190A/190A External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS Input (PV) Max. PV array input power 10400W Rated PV Input Voltage 550V d.c (160-800) Start-up Voltage 160V d.c Vmax PV (Max. PV input voltage) 800V d.c MPPT Voltage Range 200-650V d.c Full power MPPT voltage range 350-650V d.c PV Input Current(A) 13+13 Max. DC Short Circuit Current (A) 17+17 Number of MPPT Tracker 2 No.of Strings per MPPT Tracker 2+1 AC input and AC output AC grid rated voltage Three Phase;50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac AC grid rated frequency 50/60Hz Grid Type Three Phase Rated AC grid output power(W) 8000 Max AC Output Power(W) 8800 AC input/output rated current(A) 12.1/11.6 Max AC Output Current(A) 13.4/12.8 Max. 3-phase Unbalanced Output Current(A) 18.2/17.4 Max. Output short circuit current(A) 75 Max. Continuous AC Passthrough(A) 45 Peak Power (off grid) 2 time of rated power, 10s Power Factor 0.8 leading to 0.8 lagging Total Harmonic Distortion <3%(THDi, rated power) DC Current Injection <0.5% In General Data Max. Efficiency 99.9% MPPT Efficiency, 97.6% Max Efficiency Protection Anti-islanding Protection, PV String Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output overvoltage protection, Photovoltaic input lightning, Surge Protection (DC Type III / AC Type III), Over Voltage Category (DC Type II/AC Type III) Operating Temperature Range (℃) -40-60℃, >45℃ Derating Cooling Smart Cooling Degree of ingress protection IP65 Noise (dB) ≤50 dB Communication to BMS RS485; CAN Monitoring mode Wi-Fi+APP Weight (kg) 34.3 Size (W x H x D mm) 446*576*255 (including Connectors and Brackets)
Keywords:
8000W Three Phase IP65 Hybrid Solar Inverter
