Product Description
-
220V 10KW Single Phase Inverter（IP65）
Key Attributes
*Low DC voltage 40V-60V
*Wide PV range 125V~500V
*Built-in 3 of MPPT tracker
*Colorful touch LCD screen
*IP65 protection degree
*Support max 10 units in parallel
*Support storing energy from diesel generator
*Support AGM/Gel/Lithium battery
*6 Time periods for battery charging/discharging
*With RS485/CAN interface for BMS communication
*AC coupling to retrofit existing solar system
*WiFi+APP Monitoring mode

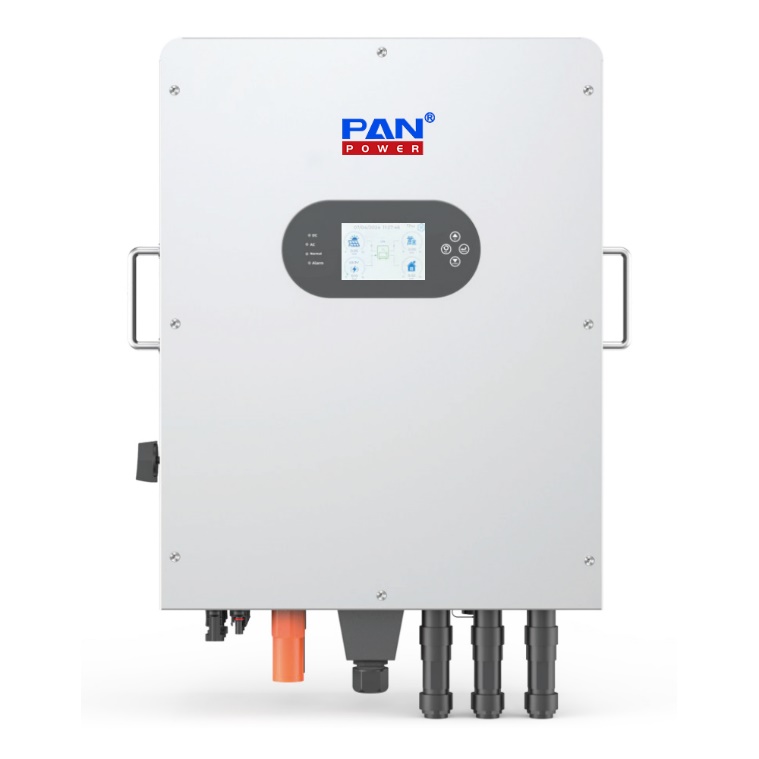

Appearance：

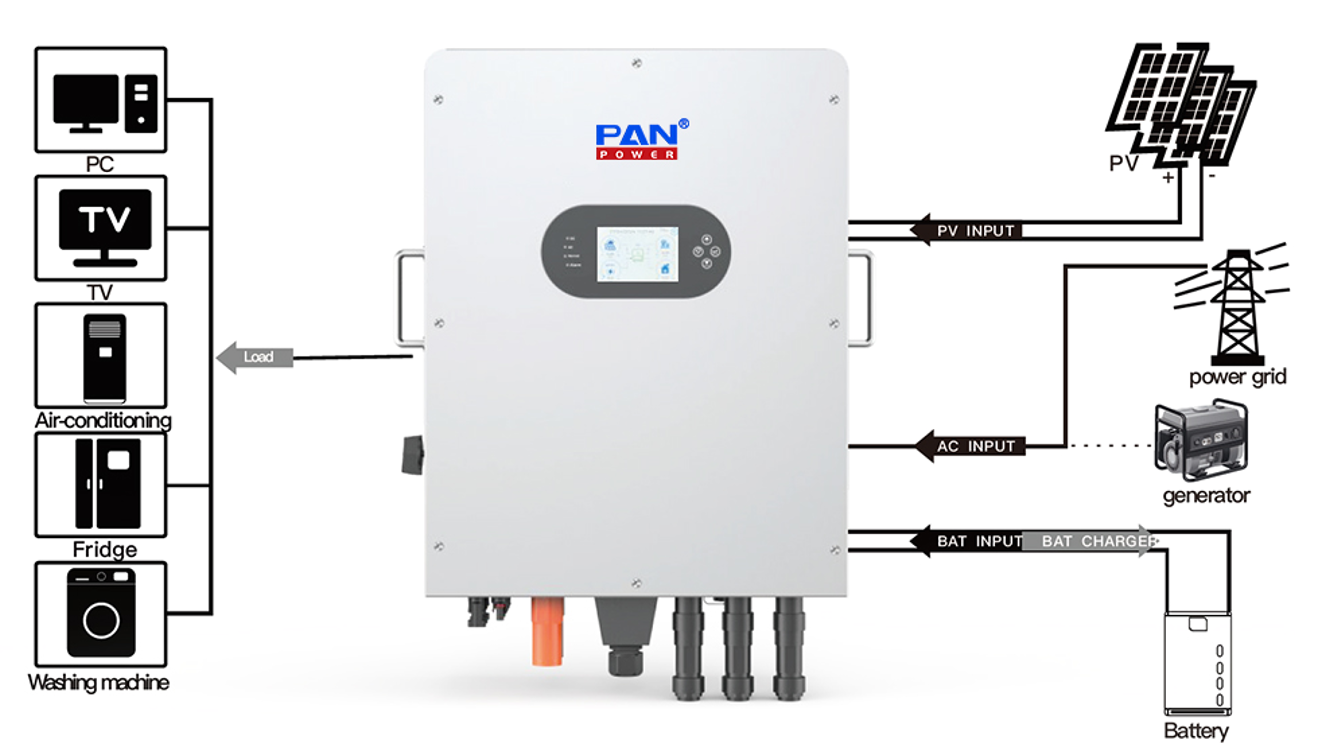

Basic System Diagram：
This IP65 hybrid inverter integrates solar PV, AC grid, and battery hybrid load into one, meeting the energy storage system needs of users and providing uninterrupted green energy for families.
Technical parameters：
Model 10KW Product Type Hybrid Inverter Battery Battery type Lithium/Lead-acid/Gel Battery voltage range 40-60V DC Max. charge/discharge current(A) 220/220 External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS Input (PV) Max. PV array input power(W) 13000 Rated PV Input Voltage 370V d.c (125-500) Start-up Voltage 125V d.c Vmax PV (Max. PV input voltage) 500V d.c MPPT Voltage Range 150-425V d.c Full power MPPT voltage range 200-425V d.c Max. PV Input Current(A) 26+26+26 Number of MPPT Tracker 3 Number of Strings per MPPT Tracker 1+1+1 AC input and AC output AC grid rated voltage 220/230Vac AC grid rated frequency 50/60Hz Grid Type Single Phase Rated AC grid output power(W) 10000 Max AC Output Power(W) 11000 Rated AC output current(A) 45.5/43.5 Max AC Output Current (A) 50/47.9 Max. Continuous AC Passthrough(A) 60 Peak Power (off grid) 2 time of rated power, 10s Power Factor 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi, rated power) <3% (of nominal power) DC Current Injection <0.5% In General Data Max. Efficiency 99.9% MPPT Efficiency, 97.6% Max Efficiency Protection Anti-islanding Protection, PV String Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output overvoltage protection, Photovoltaic input lightning, Surge Protection(DC Type II / AC Type II), Over Voltage Category (DC Type II/AC Type III) Operating Temperature Range (℃) -40-60℃, >45℃ Derating Cooling Smart Cooling Degree of ingress protection IP65 Noise (dB) ≤50 dB Communication to BMS RS485; CAN Monitoring mode Wi-Fi+APP Weight (kg) 31 Size (W x H x D mm) 446*576*254 (Excluding Connectors and Brackets)
Keywords:
10kW Single Phase Hybrid Solar Inverter 3 MPPT IP65
