Product Description
-

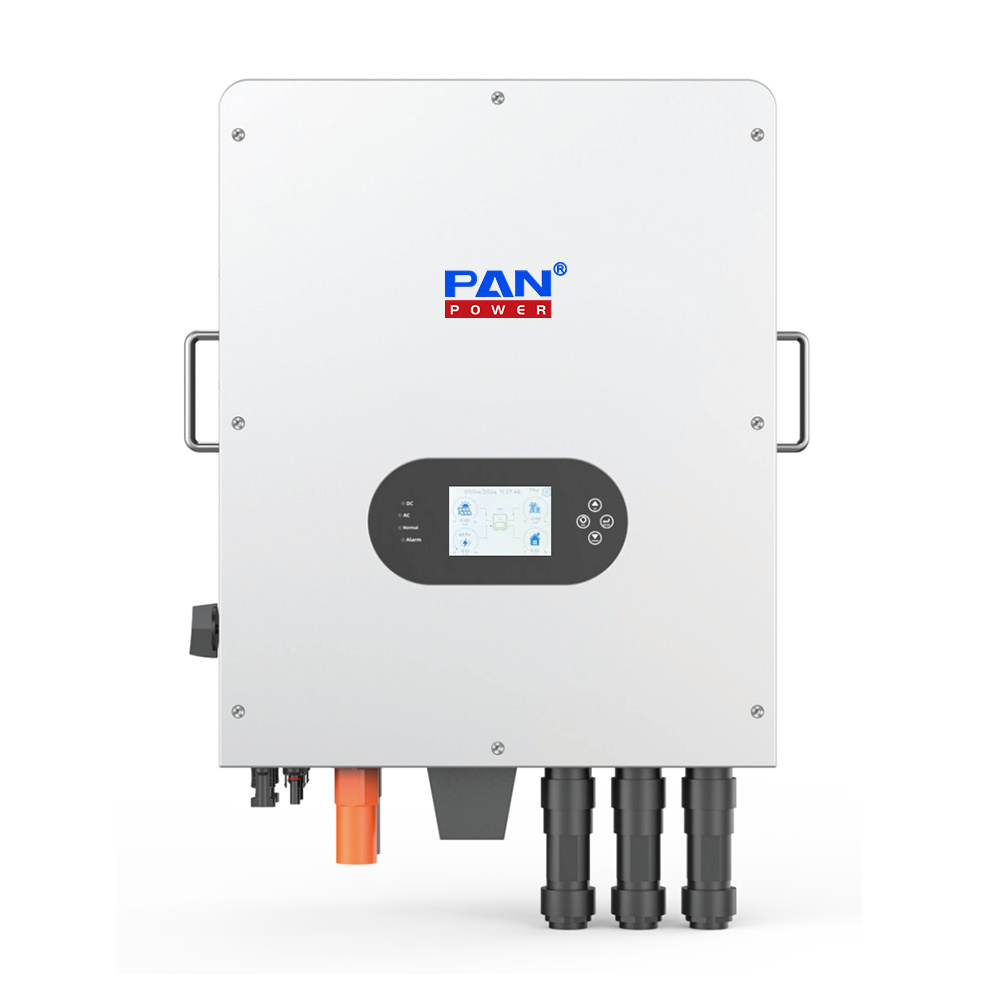

PANPOWER 8000W IP65 Solar Inverter for Single Phase Solar System
Inverter Features:
8000W IP65 Solar Inverter
Low DC voltage 40V-60V
Wide PV range 125V~500V
Built-in Dual MPPT tracker
Colorful touch LCD screen
IP65 protection degree
Support max 10 units in parallel
Support storing energy from diesel generator
Support AGM/Gel/Lithium battery
6 Time periods for battery charging/discharging
With RS485/CAN interface for BMS communication
AC coupling to retrofit existing solar system
Inverter Details:

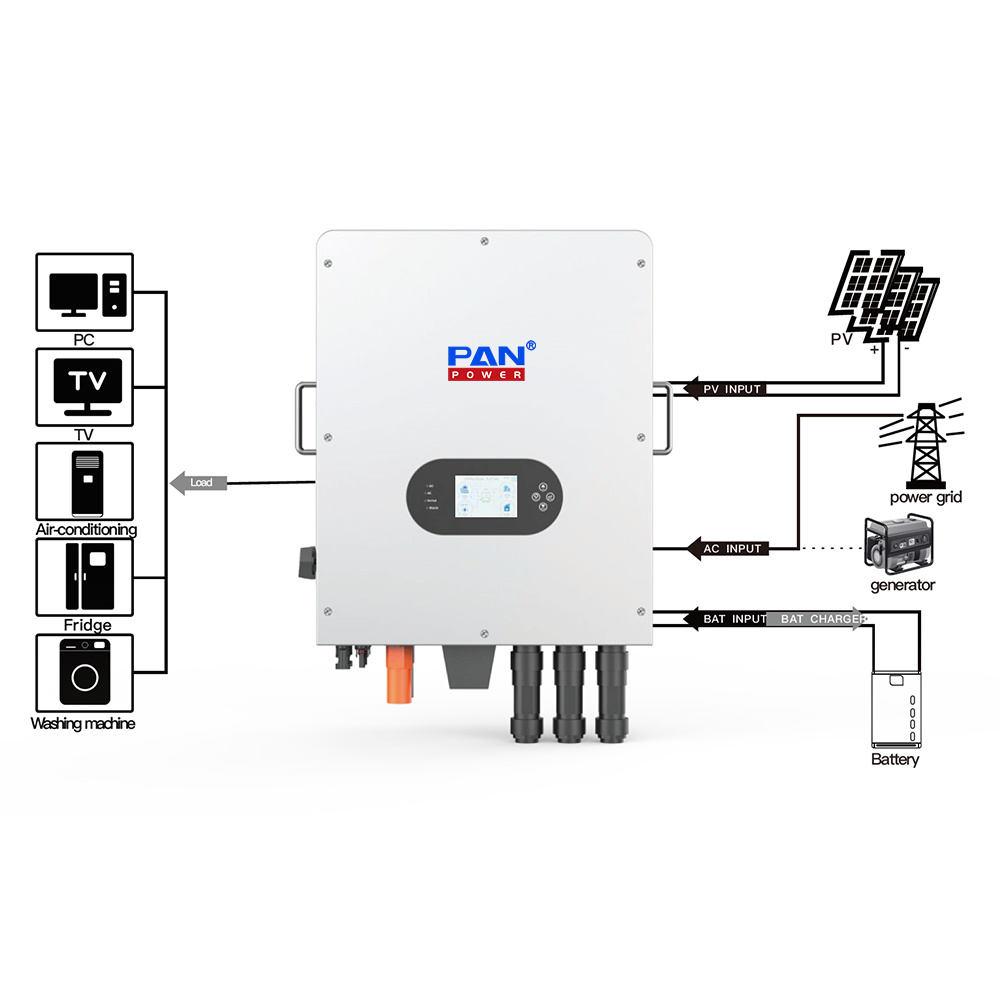

Inverter Working System:
8000W IP65 solar inverter 48v offers flexibility and reliability by integrating seamlessly with mains voltage or generator power. The touch screen settings allow you to set charging priority among AC, solar, and generator sources, while also enabling you to tailor battery charging current and voltage to meet specific application requirements.
This 8000w hybrid inverter auto communicate with lithium batteries, provides a safe and efficient means to store and utilize renewable energy. It supports the latest battery technology, making it ideal for modern solar systems.
Inverter Datasheet:
Model 8KW Product Type Hybrid Inverter Battery Battery type Lithium/Lead-acid/Gel Battery voltage range 40-60V DC Max. charge/discharge current 190A/190A External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS Input (PV) Max. PV array input power 10400W Rated PV Input Voltage 370V d.c (125-500) Start-up Voltage 125V d.c Vmax PV (Max. PV input voltage) 500V d.c MPPT Voltage Range 150-425V d.c Full power MPPT voltage range 200-425V d.c Max. PV Input Current(A) 20+20 Number of MPPT Tracker 2 No.of Strings per MPPT Tracker 1+1 AC input and AC output AC grid rated voltage 220/230Vac AC grid rated frequency 50/60Hz Grid Type Single Phase Rated AC grid output power 8000W Max AC Output Power 8800W Rated AC output current 36.4/34.8A Max AC Output Current 40/38.3A Max. Continuous AC Passthrough 50A Peak Power (off grid) 2 time of rated power, 10s Power Factor 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi, rated power) <3% (of nominal power) DC Current Injection <0.5% In General Data
Max. Efficiency 99.9% MPPT Efficiency, 97.6% Max Efficiency Protection Anti-islanding Protection, PV String Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output overvoltage protection, Photovoltaic input lightning, Surge Protection(DC Type II / AC Type II), Over Voltage Category (DC Type II/AC Type III) Operating Temperature Range (℃) -40-60℃, >45℃ Derating Cooling Smart Cooling Degree of ingress protection IP65 Noise (dB) ≤50 dB Communication to BMS RS485; CAN Monitoring mode Wi-Fi+APP Weight (kg) 29kg Size (W x H x D mm) 426*526*255 (Excluding Connectors and Brackets)
Keywords:
Single Phase 220V 8000W IP65 Solar Inverter
