Product Description
-

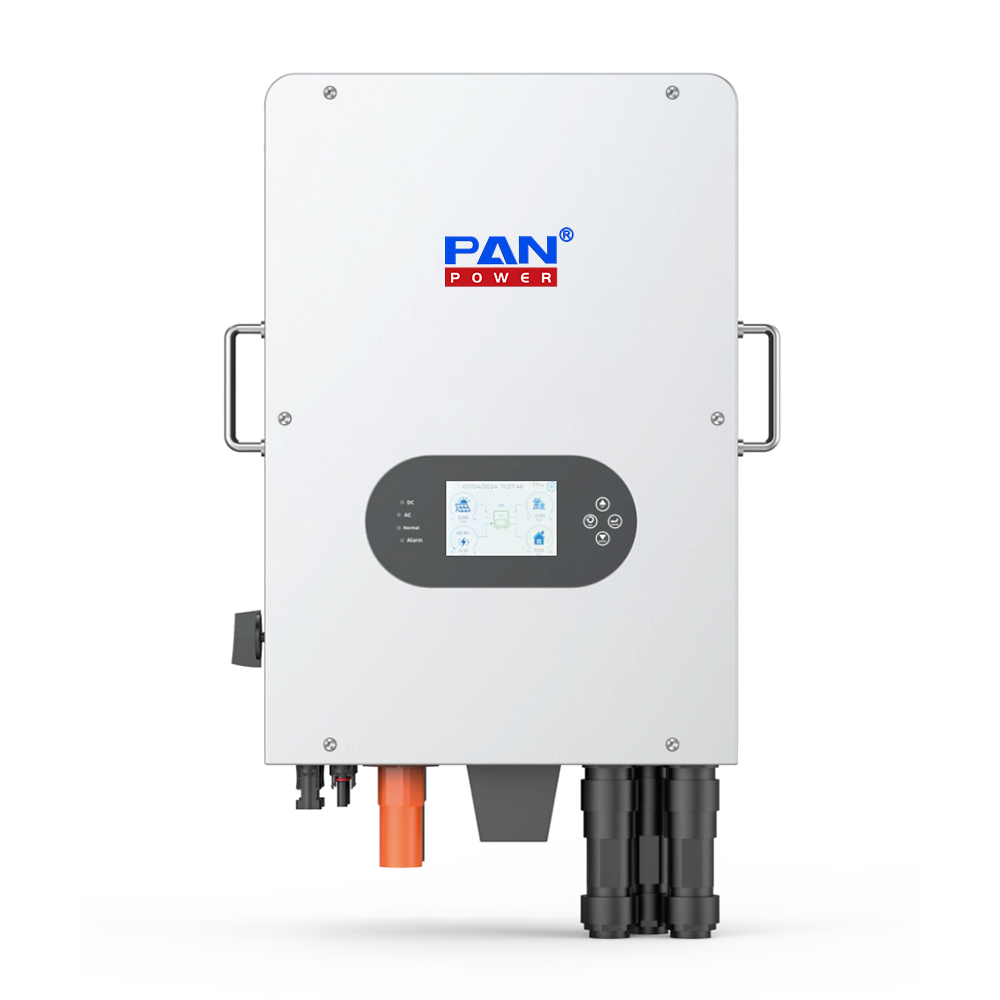

PANPOWER IP65 Single Phase Hybrid Solar Inverter 6KW
Inverter Features:
IP65 6KW Hybrid Inverter
Low DC voltage 40V-60V
Wide PV range 125V~500V
Built-in Dual MPPT tracker
Colorful touch LCD screen
IP65 protection degree
Support max 10 units in parallel
Support storing energy from diesel generator
Support AGM/Gel/Lithium battery
6 Time periods for battery charging/discharging
With RS485/CAN interface for BMS communication
AC coupling to retrofit existing solar system

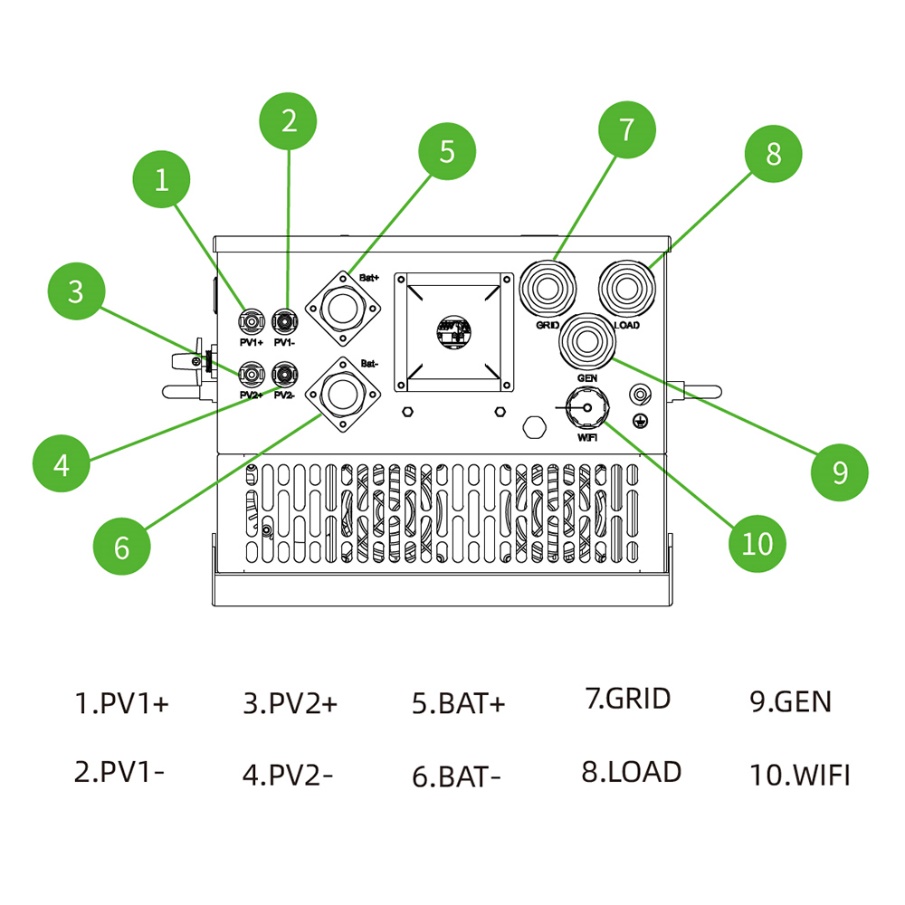

Inverter Details:

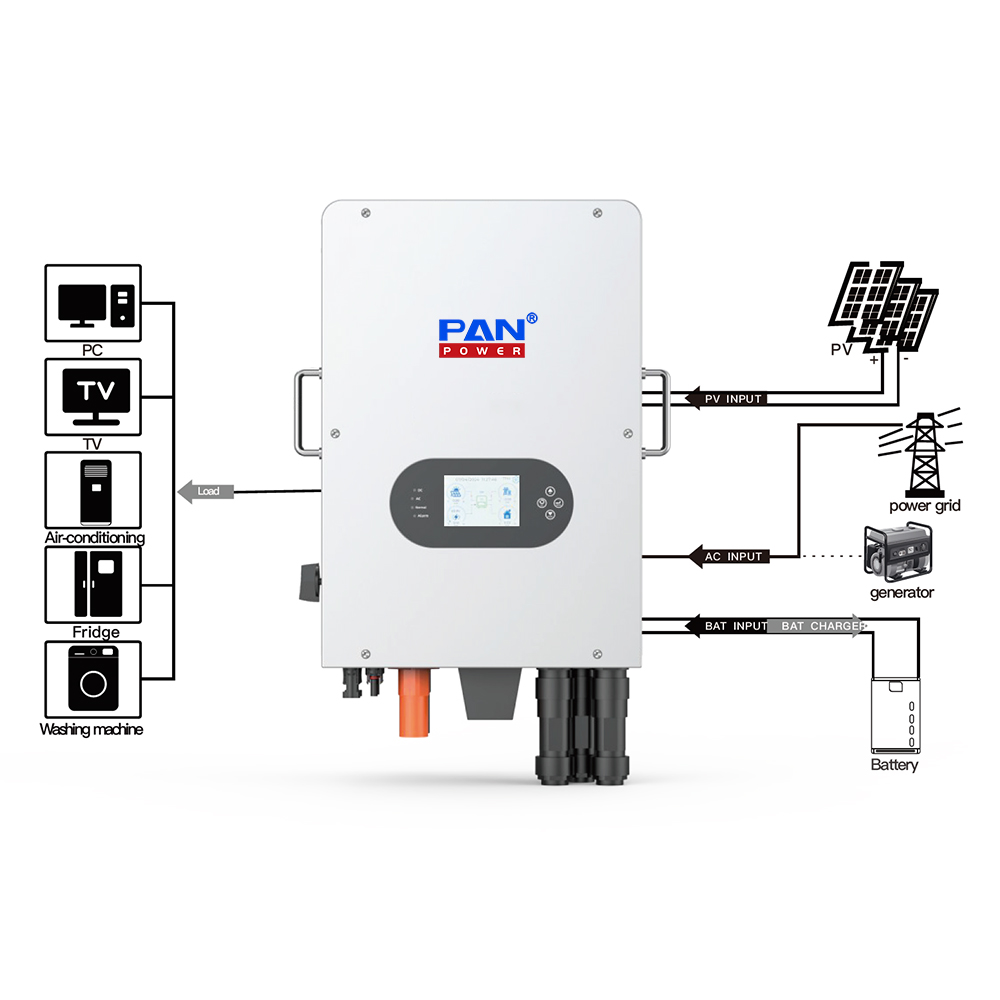

Inverter Working System:
PANPOWER IP65 single phase 6000w hybrid solar inverter 48v is ideal for residential and small commercial applications. It seamlessly integrates with both on-grid and off-grid systems, providing flexibility and reliability for users looking to optimize their energy consumption.
The 6000w hybrid solar inverter 48v supports both on-grid and off-grid operations. This means users can benefit from solar energy during the day while still having access to the grid when needed. In off-grid mode, it can store energy in batteries for use during nighttime or cloudy days.
This inverter is rated IP65, making it dust-tight and resistant to water splashes. This robust design allows for installation in various environments, including outdoor settings, without compromising performance.
Inverter Datasheet:
Model 6KW Product Type Hybrid Inverter Battery Battery type Lithium/Lead-acid/Gel Battery voltage range 40-60V DC Max. charge/discharge current 135A/135A External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS Input (PV) Max. PV array input power 7800W Rated PV Input Voltage 370V d.c (125-500) Start-up Voltage 125V d.c Vmax PV (Max. PV input voltage) 500V d.c MPPT Voltage Range 150-425V d.c Full power MPPT voltage range 200-425V d.c Max. PV Input Current(A) 13+13 Number of MPPT Tracker 2 No.of Strings per MPPT Tracker 1+1 AC input and AC output AC grid rated voltage 220/230Vac AC grid rated frequency 50/60Hz Grid Type Single Phase Rated AC grid output power 6000W Max AC Output Power 6600W Rated AC output current 27.3/26.1A Max AC Output Current 30/28.7A Max. Continuous AC Passthrough 40A Peak Power (off grid) 2 time of rated power, 10s Power Factor 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi, rated power) <3% (of nominal power) DC Current Injection <0.5% In General Data Max. Efficiency 99.9% MPPT Efficiency, 97.6% Max Efficiency Protection Anti-islanding Protection, PV String Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output overvoltage protection, Photovoltaic input lightning, Surge Protection(DC Type II / AC Type II), Over Voltage Category (DC Type II/AC Type III) Operating Temperature Range (℃) -40-60℃, >45℃ Derating Cooling Smart Cooling Degree of ingress protection IP65 Noise (dB) ≤50 dB Communication to BMS RS485; CAN Monitoring mode Wi-Fi+APP Weight (kg) 24kg Size (W x H x D mm) 346*506*255 (Excluding Connectors and Brackets)
