Product Description
-
10KW~500KW PANPOWER GK Series Low Frequency 3 Phase Inverter
Induction:
Low-frequency inverter charger is renowned for impressive peak power capacity and robust tolerance to voltage fluctuations, spikes, lightning.
Excellent performance because of an MCU intelligent control technology.A wide range of applicable loads because of power frequency transformer design and pure sinewave AC output.
A wide range, high accuracy,and full automatic voltage stabilization.
Overall protection functions( Overload protection, Short circuit protection, under voltageprotection, over voltage protection and over temperature protection).Touch screen display, for visualization of operation status of the equipment, user can set the data according to actual need.Features:
*Industrial Grade suitable for all kinds of loads.
*Low Frequency Off Grid Type
*Pure Sine Wave with Isolation
* Battery voltage: 192V/216V/240V/360V/384V/480V/512VDC
* AC voltage: 380V/400V/415VAC
* Power range: 10KW~500KW
* Frequency: 50Hz/60Hz
*Display with touch display screen
*Multiple working mode (AC grid priority, DC priority, Generator priority)
*Protection: AC input/under voltage, output/undervoltage, output overload, short circuit protection, overtemperature protection, battery overcharge/undervoltage protection etc.
Datasheet:
MODEL GK10KW~500KW Capacity 10KW~500KW DC INPUT (battery) Battery Voltage 192V/216V/240V/360V/384V/480V/512VDC Battery Type Lead acid /Gel/Lithium battery OUTPUT Nominal Voltage 380V/400VAC±1%(stable loads) Phase 3 phase, 3L+N+G Frequency Variation <+0.05% (non-synchronized); <+2% (synchronized with Mains power); Frequency Range 50/60Hz+0.1 Hz (DC priority mode) Waveform Pure Sine Wave Isolation type Output isolated Efficiency >85% Overload (AC priority) 100%~110%:10minute;110%~130%:1 minute;>130%:1Seconds Overload (DC priority) 100%~110%:30s;110%~130%:10s; > 130%:1s Crest Factor 3:1 max AC INPUT Phase 3 phase, 3L+N+G Input Voltage Range 380V/400VAC±25% Frequency 50/60Hz±10% GENERAL INFORMATION Protection degree IP20 Noise emission <58dB (1 m distance) Operating Temperature (-15℃~50℃) Cooling Forced-air Relative humidity 0-95% non-condensing Maximum altitude <1000m Build-in transformer yes COMMUNICATION Display Touch screen Communication RS232/RS485(optional) Product Qualification:

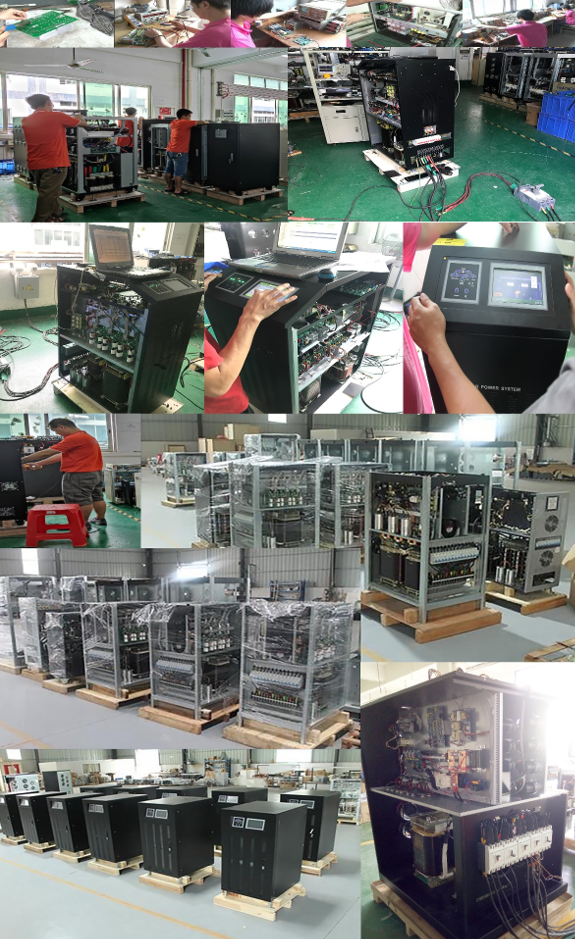

3 phase low frequency inverter is pure sine wave inverter wiht isolation output, we have rich production experience & strict quality control. Before leaving the factory, each of the low frequency inverter has undergone strict inspections. Low frequency inverter provides maximum protection for vital mission-critical networks, security applications (electro-medical), and industrial applications.
Keywords:
100KW-500KW Low Frequency Three Phase Inverter with Isolation
