Product Description
-

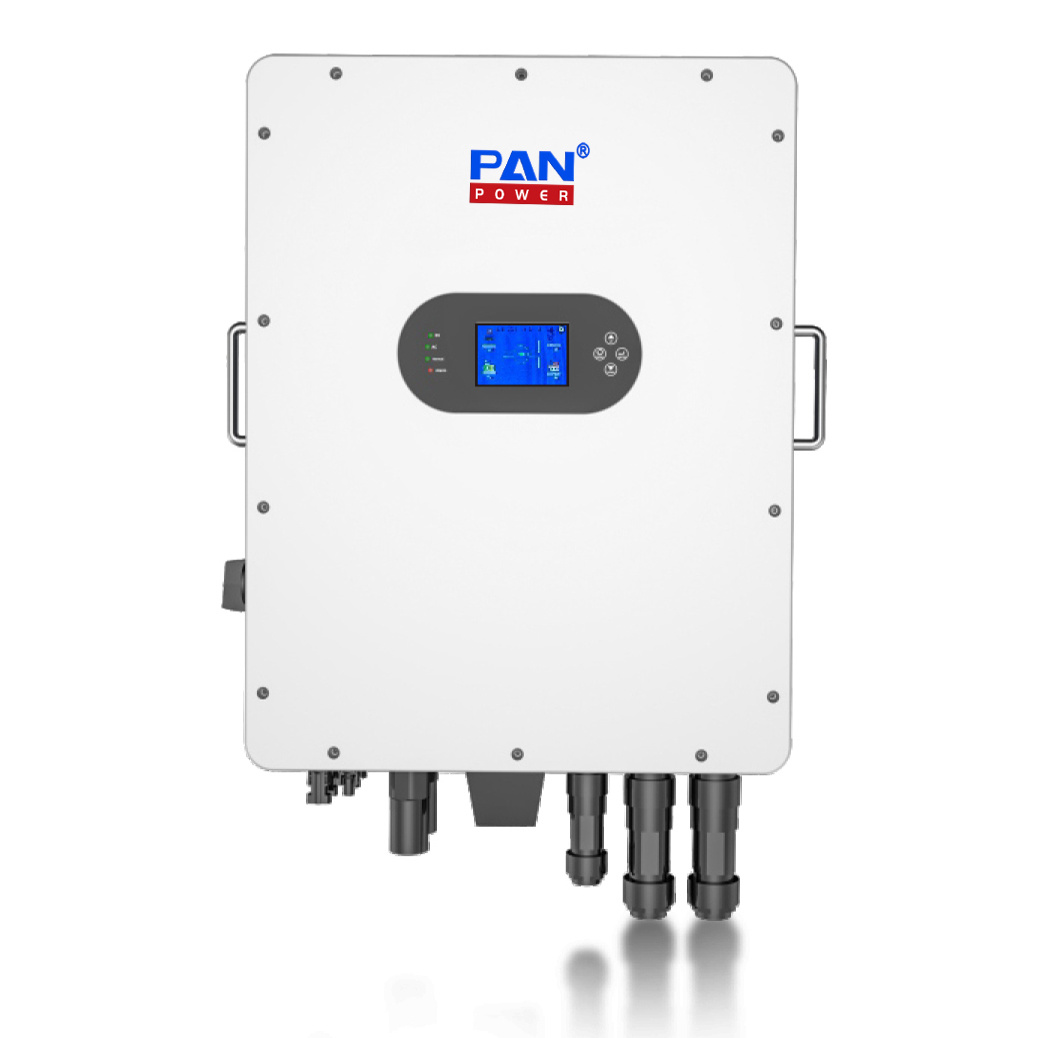

12KW IP65 Hybrid Inverter
Low DC Voltage 48V
Wide PV Range 160V~800V
High Efficiency 99.9%
Protection grade IP65
PANPOWER low voltage 3 phase hybrid solar inverter 12kw offers flexible operation modes including On-Grid, Off-Grid, Uninterruptible Power Supply. It is a IP65 class inverter, effective dust and water resistance, extending lifespan. this is a 12kw inverter which can be used indoor and outdoor.
12KW Inverter Datasheet:
Model 12KW Product Type Hybrid Inverter Battery Battery type Li-ion/Lead-acid/Gel Battery voltage range 40-60V DC Max. charge/discharge current 240A/240A External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS Input (PV) Max. PV array input power 15600W Rated PV Input Voltage 550V d.c (160-800) Start-up Voltage 160V d.c Vmax PV (Max. PV input voltage) 800V d.c MPPT Voltage Range 200-650V d.c Full power MPPT voltage range 350-650V d.c Max. PV Input Current(A) 26+13 Max. DC Short Circuit Current(A) 2 Strings per MPPT Tracker 34+17 No.of Strings per MPPT Tracker 2+1 AC input and AC output AC grid rated voltage 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac AC grid rated frequency 50Hz Grid Type Three Phase Rated AC grid output power 12000W Max AC Output Power 13200W Rated AC output current 20.07A Max AC Output Current 27.27A Max. Continuous AC Passthrough 45A Max. Output short circuit current 75A Peak Power (off grid) 2 time of rated power, 10s Power Factor 0.8 leading to 0.8 lagging Total Harmonic Distortion (THDi, rated power) <3% (of nominal power) DC Current Injection <0.5% In Grid power factor 0.8 leading to 0.8 lagging General Data Max. Efficiency 99.9% MPPT Efficiency, 97.6% Max Efficiency Protection Anti-islanding Protection, PV String Input Reverse Polarity, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output overvoltage protection, Photovoltaic input lightning, Surge Protection(DC Type III / AC Type III), Over Voltage Category(DC Type II/AC Type III) Operating Temperature Range (℃) -40-60℃, >45℃ Derating Cooling Smart Cooling Degree of ingress protection IP65 Noise (dB) ≤50 dB Communication to BMS RS485; CAN Monitoring mode Wi-Fi+APP Weight (kg) 37.5kg Size (W x H x D mm) 702×422×281 (Excluding Connectors and Brackets) 12KW Inverter Product Details:

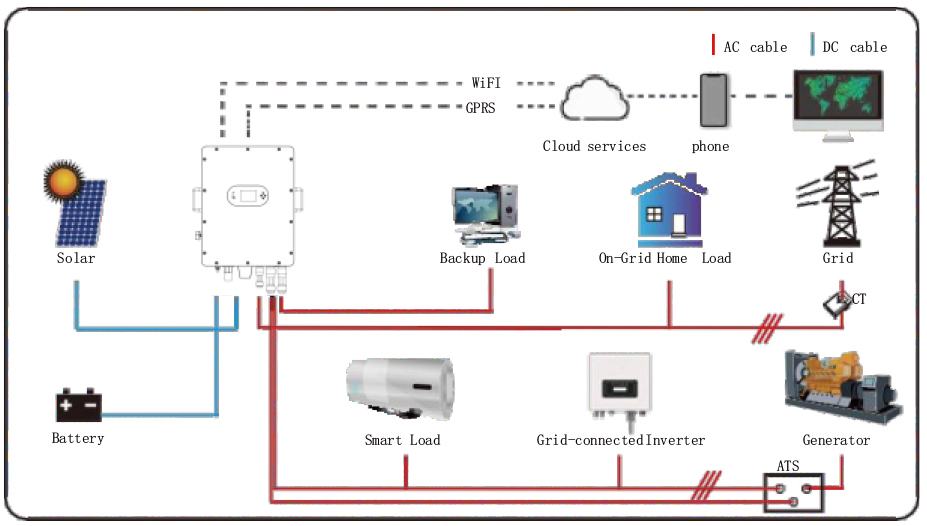

12KW Solar Inverter System：
The hybrid solar inverter 12kw intelligently manages the flow of energy between the solar panels, batteries, and the grid. The system prioritizes self-consumption by ensuring that generated solar power is using on-site before any excess is fed back into the grid, maximizing savings and reducing the carbon footprint.
Users can easily set the priority for power supply from either the battery or the grid, providing flexibility in energy management based on individual needs.Users can choose the wifi monitoring function, and monitor the working data of the inverter and solar system on the mobile phone APP.
Keywords:
12KW IP65 Hybrid Inverter
