Product Description
-
Induction
NML Series 3KW High Frequency Hybrid Solar Inverter: Efficient and User-Friendly Solar Power Solution. The 3KW high frequency solar inverter supports AC grid input, battery input and PV input, allowing flexible setup across multiple applications. With 24V low dc voltage design, these inverters ensure reliability in any configuration, making them the ideal 24 volt solar inverter choice.

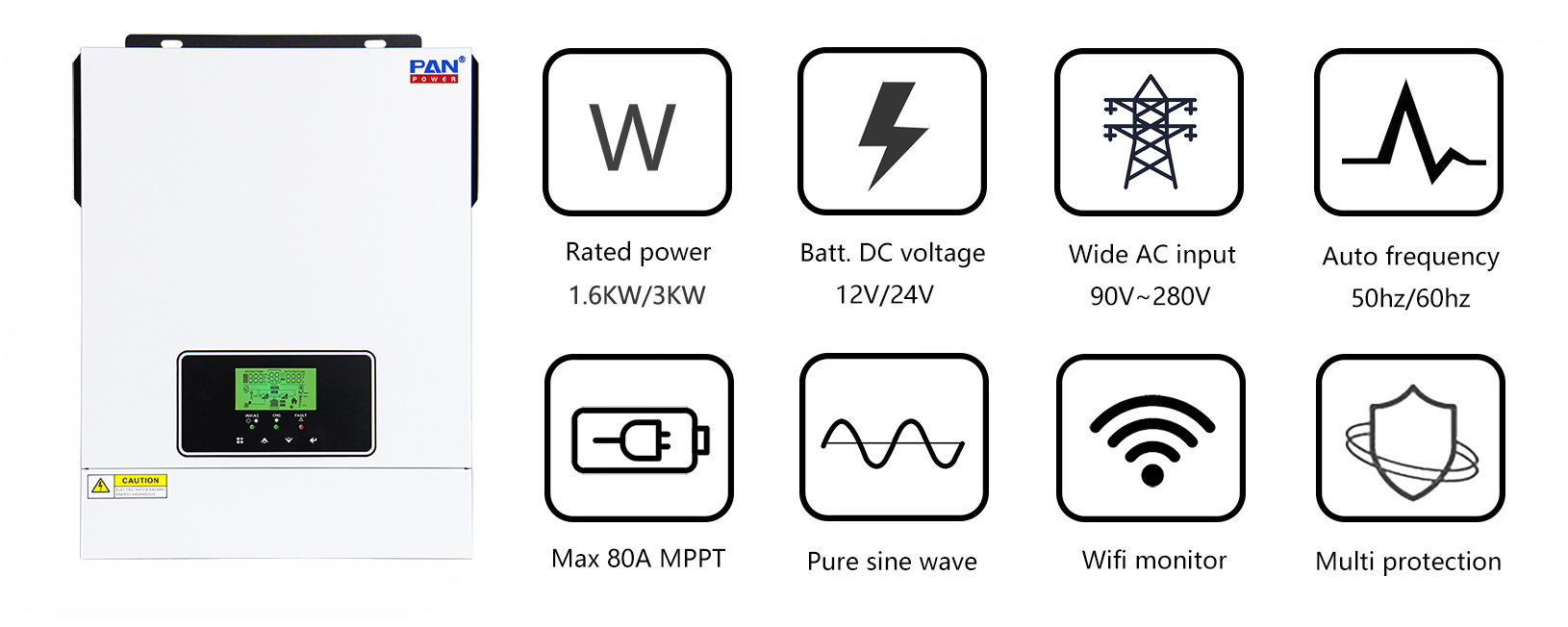

Main Features
*Inverter 3200VA/ 3000W
*Pure sine wave solar inverter
*90~280Vac wide AC input range
*Wide PV input range (30V~400VDC)
*Built-in Max 80A MPPT solar charger
*Max PV power 3000W
*WiFi monitor available for IOS and android
*Smart battery charge design to optimize battery life
*Compatible with lithium battery
Datasheet
This series inverter is small single phase inverter 3200VA(3000W),which can meet the needs of small household appliances.
Model
NML-3200-24
RATED POWER
3200VA/3000W
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
3000W
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
6400VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
5s@＞150% loads,10s@115%~150% loads
Maximum Conversion Efficiency (PV to inv)
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
24Vdc
Floating Charging Voltage (Adjustable)
27Vdc
Overcharge Protection (Adjustable)
32Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
400Vdc
Max. PV Array Power
3000W
MPPT Tracking Range
30~400Vdc
Recommend PV Voltage
240Vdc
Max. PV Charging Current
80A
Max. AC Charging Current
60A
Max. Charge Current (PV+AC)
80A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication Interface
RS232
Dimension, D x W x H (mm)
95*273*357
Net Weight(kg)
5.4

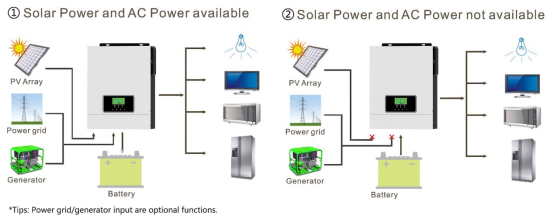

System Diagram
This series of 3kva 3kw inverter is compatible with solar panel input, battery input, AC input, and generator input, providing stable and clean energy to ensure uninterrupted power supply to users.
FAQQ: What’s the payment term of this 3kva inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 3kw inverter pure sine wave output?
A: Yes, 3kw 3000w pure sine wave inverter
Q: What is the delivery time of this 3kw solar inverter?
A: 3kw inverter in stock. Can delivery immediately.
Q: What is the shipping way of this 3kw inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 3kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
