Product Description
-
Induction
PANPOWER MPPT Solar Charge controller 100A 120A 150A offers 192V, 240V, 360V, 384V options. this series 100A MPPT charge controller is designed for high power off grid system, stable and reliable quality and functions. Adopt MCU control technology, stable and constant be efficient to protect battery and extend its life span. The power of our High Voltage MPPT Solar Controller, optimized for different battery banks. Maximize solar energy utilization with advanced MPPT technology and enjoy scalability through parallel connection.
Main Features
1--Adopt advanced MCU microprocessor control technology.

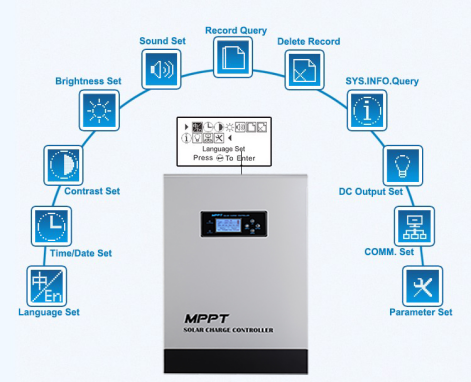

2--LED and LCD display with multi-function.
3--Advanced MPPT technology, high converting efficiency higher than 99% for minimizing energy loss.
4--Reversed current protection at night, over voltage and reverse polarity protection.

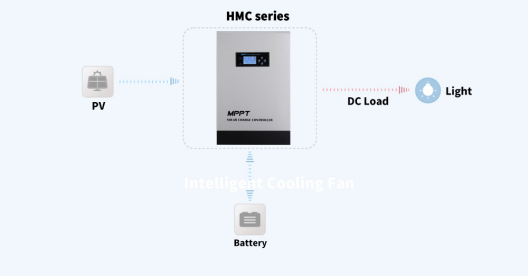

5--Capable of selecting different charging mode for various types of batteries.System Diagram
Product Details
Technical Parameters
Model 100A 120A 150A Output Characteristics Optional Battery
Type192V/220V/240V/
360V/384VLead-acid battery,lithium battery,gel battery
or user-definedCharging Method Floating Charging Equalizing Charging Lead Acid Battery 192V System 220V 227V 220V System 247.5V 255.6V 240V System 275V 284V 360V System 412.5V 426V 384V System 440V 454V Gel Battery 192V System 220.8V 230.4V 220V System 248.4V 259.2V 240V System 276V 288V 360V System 414V 432V 384V System 441.6V 460.8V SLA 192V System 227.2V 230.4V 220V System 258.6V 259.2V 240V System 284V 288V 360V System 428V 432V 384V System 454.4V 460.8V Floating Charging
Voltage192V/220V/240V 192V-300V(Adjustable) 360V/384V 384V-600V(Adjustable) Model 100A 120A 150A Rated Current 192V/220V/240V/
360V/384V100A 120A 150A Current-limiting
Protection192V/220V/240V/
360V/384V105A 125A 155A Temperature
Coefficient192V/220V/240V/
360V/384V±0.02%/℃ Auto Temperature
Compensation192V/220V/240V/

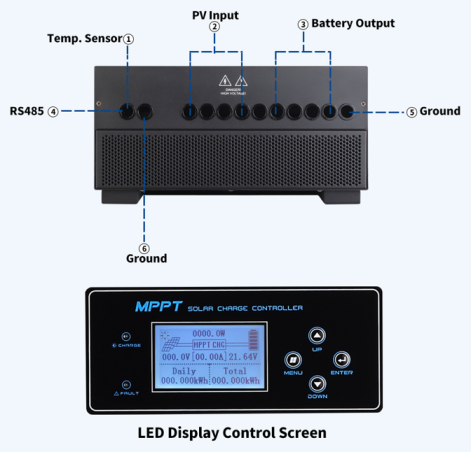

360V/384V-4mV℃ Display LCD Display LCD panel indicating solar power,load
level,batteryvoltage/capacity,
charging current,and fault conditionsLED Display Charge Indication,Fault Indication PC UpponComputer
(Communication port)RS-485 Protection Input Open
Circuit Voltage192V/220V/240V S650V 360V/384V S800V Input Low Voltage Protection Reference Input Attribute Input High Voltage Protection Reference Input Attribute Input Polarity Reverse Protection Yes Output Polarity Reverse Protection Yes High Temperature Protection ≥85℃ Audible Noise ≤45dB Heat Dissipation Mode Intelligent Air Cooling Model 100A 120A 150A Product Specification Package Product Size(L*W*H)mm 624x411x205 624x450x205 NetWeight(kg) 28.3 Type Of Mechanical Protection IP32 Environmental Requirements Humidity 0~90%RH(No Dew) Height Above Sea Level 0~3500m AmbientTemperature -20℃~+50℃ Storage Temperature -40℃~+70℃ Photovoltaic Module Configuration System Voltage (battery Voltage) Photovoltaic Module Load Voltage
(recommended Data)192V System 550V 220V System 240V System 360V System 700V 384V System -
1--Adopt advanced MCU microprocessor control technology.
2--LED and LCD display with multi-function.
3--Advanced MPPT technology, high converting efficiency higher than 99% for minimizing energy loss.4--Reversed current protection at night, over voltage and reverse polarity protection.
5--Capable of selecting different charging mode for various types of batteries. -
