Product Description
-
Induction
CP series is a new series of intelligent multi-purpose solar charge controllers, which is used in the off grid solar system. Its innovative design makes it easy to install and quite user-friendly. Maximum charging current up to 50A / 60A / 75A / 100A.
Product Features
● Wide DC voltage: can be 96V,108V,120V,192V,216V,220V,240V,360V,384V
● Wide charge current: can be 50A, 60A, 75A, 100A
● Kinds of battery protect data setting;
● MCU intelligent control technology, high performance;

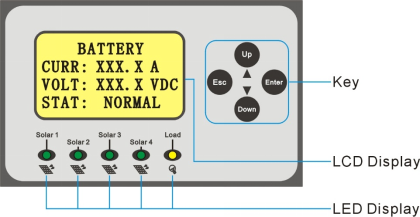

● LCD+LED display mode, clearly to know the operation status;
● Solar array and battery use the same positive system, multiple independent solar array input control;
● Display battery voltage, battery charge current, internal chassis temperature, accumulate photovoltaic power generation function, accumulate battery power function, accumulate power consumption function, solar panel current for each strings etc.
● Complete protect: reverse battery protection, battery overcharge protection, internal chassis cooling control (more than 45℃ the fan will turn on), battery anti-reverse charge at night time function and alarm function;
● Have history record and password protect function;

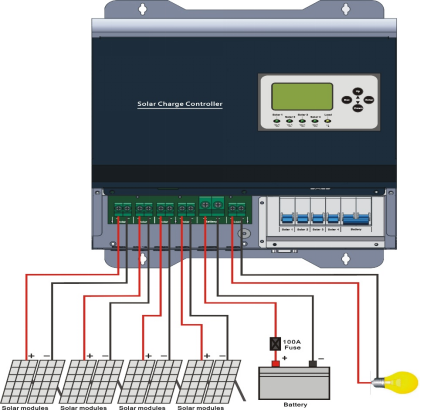

● Have time display function;System diagram
Product Details
Model: CP
96 (120)
60A
96 (120)
75A
96(120)
100A
192 (384)
50A
192 (384)
75A
192 (384)
100A
Rated voltage
96V, X2/120V
192V, X2/384V
Rated current
60A
75A
100A
50A
75A
100A
Input
of PV
Maximum power
2.88KWp
2.88KWp
2.88KWp
10KWp, *2/384V
15KWp, *2/384V
20KWp, *2/384V
Maximum
photovoltaic voltage
≤175V
≤175V
≤175V
<350V, *2/384V
Direction
①—Solar 1 input positive/negative terminal;
②-- Solar 2 input positive/negative terminal;
③-- Solar 3 input positive/negative terminal;
④-- Solar 4 input positive/negative terminal;
⑤—Battery input positive/negative terminal;
⑥—DC load output positive/negative terminal(optional);
⑦—Solar 1 input switch;
⑧-- Solar 2 input switch;
⑨-- Solar 3 input switch;
⑩-- Solar 4 input switch;
--Battery input switch;
--RS232 communication interface（optional）;
--Ground terminal;Technical Parameters
Input
of PV
Maximum power
2.88KWp
2.88KWp
2.88KWp
10KWp, *2/384V
15KWp, *2/384V
20KWp, *2/384V
Maximum
photovoltaic voltage
≤175V
≤175V
≤175V
<350V, *2/384V
Number of inputs
2
3
4
2
3
4
Maximum current
of each input
30A
30A
25A
25A
Voltage of
overcharge protection
111.95V
111.95V
111.95V
222.4V, *2/384V (settable)
Voltage of
overcharge recovery
109.6V
109.6V
109.6V
219.2V, *2/384V (settable)
DC output
Rated output current
50A
50A
50A
50A
Voltage of load
overvoltage protection
/
/
/
248V, *2/384V DC (settable)
Voltage of load
overvoltage recovery
/
/
/
240V, *2/384V DC
Voltage of load
Over discharge recovery
/
/
/
203.2V, *2/384V DC (settable)
Voltage of load
Over discharge protection
/
/
/
175V, *2/384V DC
Overall efficiency
>98%
Protection function
Charge over-current, over-voltage/DC output under-voltage, over-voltage, over-current, etc..
Starting temperature of exhaust fan
>45℃
Ambient temperature for operation
0-40°C
Ambient temperature for storage
-15 to +50°C
Operation/storage conditions
0-90% (no condensation)
Tips: DC voltage can be 96V,108V,120V,192V,216V,220V,240V,360V,384V.
-
● Wide DC voltage: can be 96V,108V,120V,192V,216V,220V,240V,360V,384V
● Wide charge current: can be 50A, 60A, 75A, 100A
● Kinds of battery protect data setting;
● MCU intelligent control technology, high performance;
● LCD+LED display mode, clearly to know the operation status;
● Solar array and battery use the same positive system, multiple independent solar array input control;
● Display battery voltage, battery charge current, internal chassis temperature, accumulate photovoltaic power generation function, accumulate battery power function, accumulate power consumption function, solar panel current for each strings etc.
● Complete protect: reverse battery protection, battery overcharge protection, internal chassis cooling control (more than 45℃ the fan will turn on), battery anti-reverse charge at night time function and alarm function;
● Have history record and password protect function;
● Have time display function;
-
Input
of PV
Maximum power
2.88KWp
2.88KWp
2.88KWp
10KWp, *2/384V
15KWp, *2/384V
20KWp, *2/384V
Maximum
photovoltaic voltage
≤175V
≤175V
≤175V
<350V, *2/384V
Number of inputs
2
3
4
2
3
4
Maximum current
of each input
30A
30A
25A
25A
Voltage of
overcharge protection
111.95V
111.95V
111.95V
222.4V, *2/384V (settable)
Voltage of
overcharge recovery
109.6V
109.6V
109.6V
219.2V, *2/384V (settable)
DC output
Rated output current
50A
50A
50A
50A
Voltage of load
overvoltage protection
/
/
/
248V, *2/384V DC (settable)
Voltage of load
overvoltage recovery
/
/
/
240V, *2/384V DC
Voltage of load
Over discharge recovery
/
/
/
203.2V, *2/384V DC (settable)
Voltage of load
Over discharge protection
/
/
/
175V, *2/384V DC
Overall efficiency
>98%
Protection function
Charge over-current, over-voltage/DC output under-voltage, over-voltage, over-current, etc..
Starting temperature of exhaust fan
>45℃
Ambient temperature for operation
0-40°C
Ambient temperature for storage
-15 to +50°C
Operation/storage conditions
0-90% (no condensation)
Tips: DC voltage can be 96V,108V,120V,192V,216V,220V,240V,360V,384V.
-
