Product Description
-
Induction
Model AT Series Charge mode PWM Multi-stage (bulk. absorption. float. equalized) Rated voltage 12V/24V/ 48V AUTO Charge current 10A 15A 20A 30A 40A 50A 60A Max solar input <50VDC (12V/24V); <100VDC (48V); Float charge 13.8V/27.6V/55.2V Discharge stop 10.7V/21.4V/42.8V Main Features
AT series is PWM solar charge controller that incorporates efficient PWM crediting boost battery life and improving system performance. This series solar charge controller automatically recognizes battery voltages, supporting 12V, 24V, 36V, and 48V systems, charge current range is 10A~60A.
•PWM Solar charge controller
•Control mode: PWM control
•Charging current: 10A, 20A, 30A,40A,50A,60A
•System voltage 12V/24V/48V
•Fully 4-stage PWM charge management.

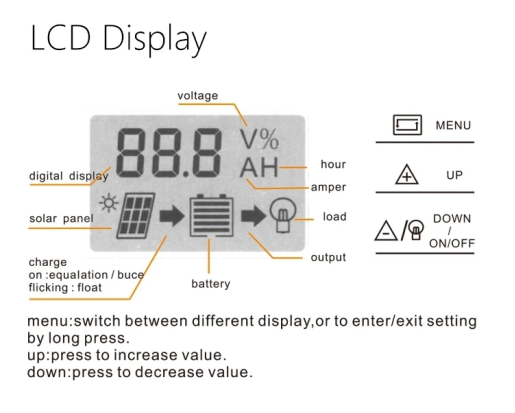

•One-key setting,digital display, auto memory function.
•Dual mosfet Reverse current protections, low heat productions.
•Automatically adjust the charging and discharging
•Protection: Over-charge,over-discharge protection functions designed for battery bank.Technical Parameters
USB output
5V2A
Self-consume
<10mA
Working temperature
-35℃ to +60℃
Protection Degree
IP32

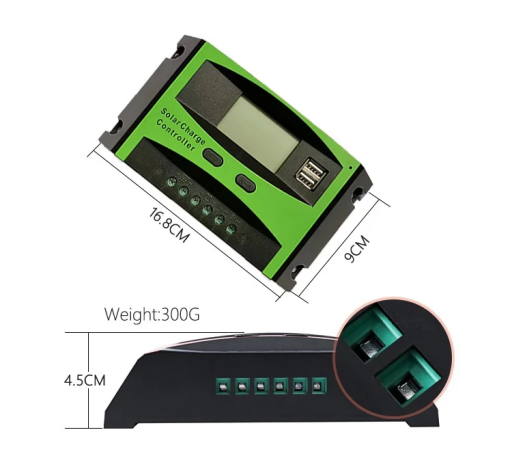

Dimension
168x90x45mm
Weight
300g

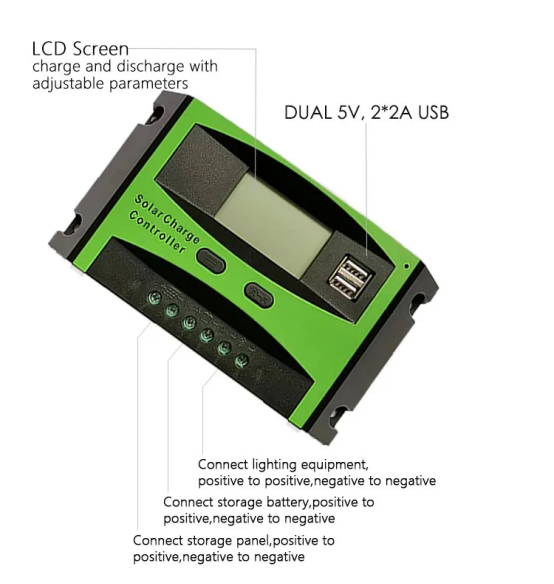

Product Details
-
AT series is PWM solar charge controller that incorporates efficient PWM crediting boost battery life and improving system performance. This series solar charge controller automatically recognizes battery voltages, supporting 12V, 24V, 36V, and 48V systems, charge current range is 10A~60A.
•PWM Solar charge controller
•Control mode: PWM control
•Charging current: 10A, 20A, 30A,40A,50A,60A
•System voltage 12V/24V/48V
•Fully 4-stage PWM charge management.
•One-key setting,digital display, auto memory function.
•Dual mosfet Reverse current protections, low heat productions.
•Automatically adjust the charging and discharging
•Protection: Over-charge,over-discharge protection functions designed for battery bank.
Keywords:
12V 24V 36V 48V PWM Solar Charge Controller 10A-60A
