Product Description
-
Introduction
1. The new generation of MPPT controller produced by our company is a highly intelligent product developed according to the latest technology. This product has many excellent performances and innovative maximum power point tracking technology, which can significantly improve the energy utilization and conversion efficiency of the solar system. Up to 99%.
2. This controller is used in solar off-grid system (independent system) to automatically adjust charging and discharging. The MPPT controller has an advanced tracking algorithm to obtain the maximum power of the solar cell module and charge the battery; the battery charging process of the MPPT controller is optimized to extend the battery life and improve the system performance.Main Features
* Charge current: 30A 40A 50A 60A 80A 100A
* DC voltage: 12V 24V 36V 48V – Auto recognition
* PV wide voltage range input: 16VDC~150VDC
* Three-stage charging technology
* Setting float charging voltage available
* DSP chip control, high precision, high efficiency
* Intelligent maximum power point tracking technology
* Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protectionTechnical Parameters
Model
LVC30A
LVC40A
LVC50A
LVC60A
LVC80A
LVC100A
Rated Charge current
30A
40A
50A
60A
80A
100A
Max current
32A
42A
52A
62A
82A
102A
System Type
DC12V/24V/36V/48V (Automatic recognition)
System Voltage
12V system
DC9V~DC15V
24V system
DC18V~DC30V
36V system
DC27V~DC45V
48Vsystem
DC36V~DC60V
MPPT Working Voltage and Range
12V system
DC20V~DC100V
24V system
DC38~DC150V
36V system
DC58~DC150V
48Vsystem
DC65~DC150V
Max. PV Power
12V system
360W
480W
600W
720W
960W
1200W
24V system
720W
960W
1200W
1440W
1920W
2400W
36V system
1080W
1440W
1800W
2160W
2880W
3600W
48V system
1440W
1920W
2400W
2880W
3840W
4800W
Charge Mode
Maximum Power Point Tracking
Method
3 stages: fast charge(MPPT),constant voltage, floating charge
Soft Start Time
≤10S
Dynamic Response Recovery Time
500us
Conversion Efficiency
≥96.5%, ≤99%
PV Modules Utilization Rate
≥99%

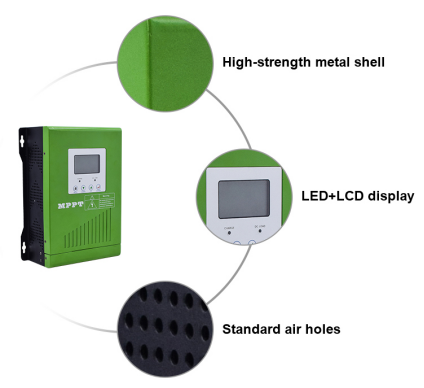

Display
LED+LCD
Protection
Input/output polarity reverse connection protection, Low/high voltage, Short circuit, Over temperature(+85℃)
Cooling method
Forced air cooling, fan speed is regulated by temperature, fan is low when internal temperature is low, Slowly running or stalling, the fan stops when the controller stops working;
Noise
≤50dB
Humidity
0~90%RH ( no condense)
Altitude
0~3000m
Operating Temperature
-20℃ ~ +40℃
Storage Temperature
-40℃ ~ +75℃
Atmospheric Pressure
70~106kPa
Type of Mechanical Protection
IP21
Color
Green
N.G(kg)
2.7
2.7
3.4
3.4
6.8
6.8
Measurement DxWxH(mm)
290*230*100
345*255*160

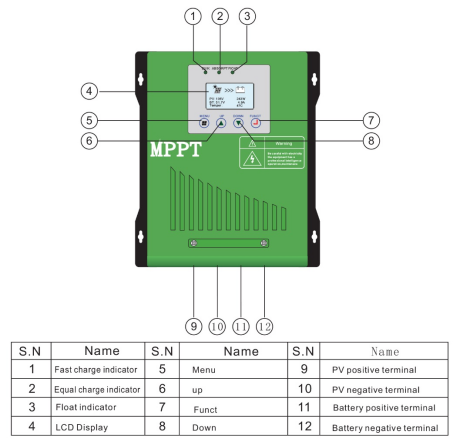

Product Details

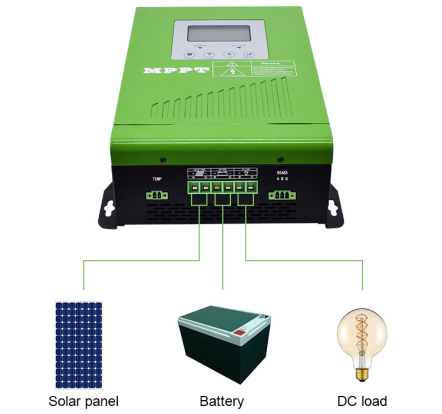

System Connection
-
* Charge current: 30A 40A 50A 60A 80A 100A
* DC voltage: 12V 24V 36V 48V – Auto recognition
* PV wide voltage range input: 16VDC~150VDC
* Three-stage charging technology
* Setting float charging voltage available
* DSP chip control, high precision, high efficiency
* Intelligent maximum power point tracking technology
* Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protection -
Model
LVC30A
LVC40A
LVC50A
LVC60A
LVC80A
LVC100A
Rated Charge current
30A
40A
50A
60A
80A
100A
Max current
32A
42A
52A
62A
82A
102A
System Type
DC12V/24V/36V/48V (Automatic recognition)
System Voltage
12V system
DC9V~DC15V
24V system
DC18V~DC30V
36V system
DC27V~DC45V
48Vsystem
DC36V~DC60V
MPPT Working Voltage and Range
12V system
DC20V~DC100V
24V system
DC38~DC150V
36V system
DC58~DC150V
48Vsystem
DC65~DC150V
Max. PV Power
12V system
360W
480W
600W
720W
960W
1200W
24V system
720W
960W
1200W
1440W
1920W
2400W
36V system
1080W
1440W
1800W
2160W
2880W
3600W
48V system
1440W
1920W
2400W
2880W
3840W
4800W
Charge Mode
Maximum Power Point Tracking
Method
3 stages: fast charge(MPPT),constant voltage, floating charge
Soft Start Time
≤10S
Dynamic Response Recovery Time
500us
Conversion Efficiency
≥96.5%, ≤99%
PV Modules Utilization Rate
≥99%
Display
LED+LCD
Protection
Input/output polarity reverse connection protection, Low/high voltage, Short circuit, Over temperature(+85℃)
Cooling method
Forced air cooling, fan speed is regulated by temperature, fan is low when internal temperature is low, Slowly running or stalling, the fan stops when the controller stops working;
Noise
≤50dB
Humidity
0~90%RH ( no condense)
Altitude
0~3000m
Operating Temperature
-20℃ ~ +40℃
Storage Temperature
-40℃ ~ +75℃
Atmospheric Pressure
70~106kPa
Type of Mechanical Protection
IP21
Color
Green
N.G(kg)
2.7
2.7
3.4
3.4
6.8
6.8
Measurement DxWxH(mm)
290*230*100
345*255*160
