Product Description
-
Induction
11kW 150A 48V high frequency solar inverter, Off-Grid Solar Inverter with 500VDC PV Input. This MPPT inverter series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. For user's power extend need, this series inverter supports up to 9 units in parallel function. The QJ-E series 11KW inverter has built-in dual MPPTs and supports two independent PV strings input, which can meet the solar panel usage needs of different users. It is perfect backup power supply for on off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
Main Features
*11KW on off grid hybrid solar inverter
*Pure sine wave solar inverter
*Built-in high efficient MPPT solar charger
*Max PV strings voltage 500VDC
*Inverter can work without battery during daytime
*Auto restart while AC is recovering
*Optional WiFi monitory for IOS and Android
*Solar, Grid and Battery Energy complement each other, priority selectable
*Smart battery charge design to optimize battery life
*RS232, BMS/RS485, Dry Contact Communication interface
*Support lithium activation wake-up and cold start function
*Max 9 units in parallel to extend power
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
Model QJ-E-11KW QJ-E-11KW-B RATED POWER 11KVA/11KW 11KVA/11KW Parallel Function NO Yes, up to 6 units INPUT Voltage 220V/230V/240VAC Selectable Voltage Range 170-280 VAC (UPS); 90-280 VAC (Appliance) Frequency Range 50Hz/60Hz (Auto sensing) OUTPUT Rated Power 11000W Output Voltage 220V/230V/240VAC± 5% Output Frequency 50Hz/60Hz ± 1% Waveform Pure sine wave Peak Power 22000VA Transfer Time 10ms typical (UPS); 20ms typical (Appliances) Overload Capacity Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads. Maximum Conversion Efficiency 98% GRID CONNECTED OPERATION Output Voltage 220V/230V/240VAC± 5% Feed Into Grid Voltage Range 195V~253V Feed Into Grid Voltage Range 49-51±1Hz/ 59-61±1Hz Nominal Output Current 47.8A Power Factor Range ＞0.99 BATTERY Battery Type AGM/Gel/Lithium Rated Battery Voltage 48Vdc Constant Charging Voltage (Adjustable) 56.4VDC Floating Charging Voltage (Adjustable) 54Vdc Overcharge Protection (Adjustable) 63Vdc SOLAR CHARGER & AC CHARGER Max. PV Array Open Circuit Voltage 500Vdc Max. PV Array Power 2*5500W (Dual MPPT) Max PV Input Current & Number 18A*2 MPPT Tracking Range 90~500Vdc Recommend PV Voltage 300~400Vdc Max. PV Charging Current 150A Max. AC Charging Current 150A Max. Charge Current (PV+AC) 150A ENVIRONMENT Humidity 2% to 95% Relative Humidity (Non condensing) Operating Temperature -10° C to 50° C Storage Temperature -15° C to 60° C Noise ≤50db PHYSICAL Display LCD Monitor function Wifi module (optional) Communication function Yes, Can Communicate with Lithium Battery BMS Communication Interface RS485/RS232/Dry Contact Dimension, D x W x H (mm) 148*550*570 Net Weight(kg) 19 19.2 System Diagram
5.5KW single phase solar inverter is a pure sine wave off-grid hybrid solar inverter with a built-in MPPT solar controller. This 5.5KW system can max connect 500V 6500W solar panel. Suitable for household usage of lighting, fans, fridge, tv, laptop etc. Efficiency up to 98%.
Parallel Function
5.5KVA/5500W 100A Pure Sine Wave Solar Inverter Parallel Version Hybrid Inverter, This 5500W inverter supports parallel operation up to 9 units in 1-phase or 3-phase.

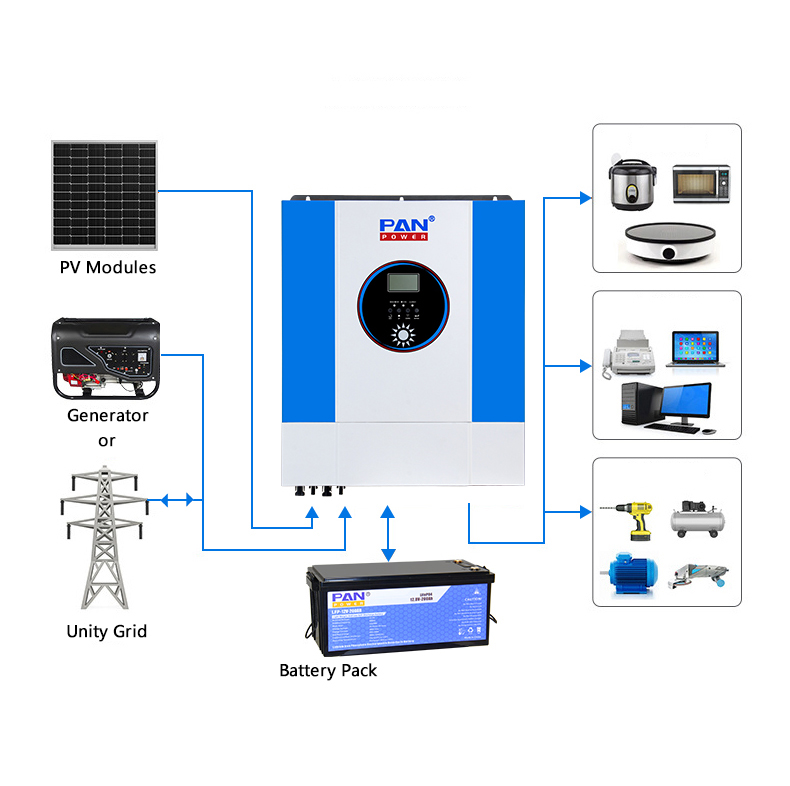

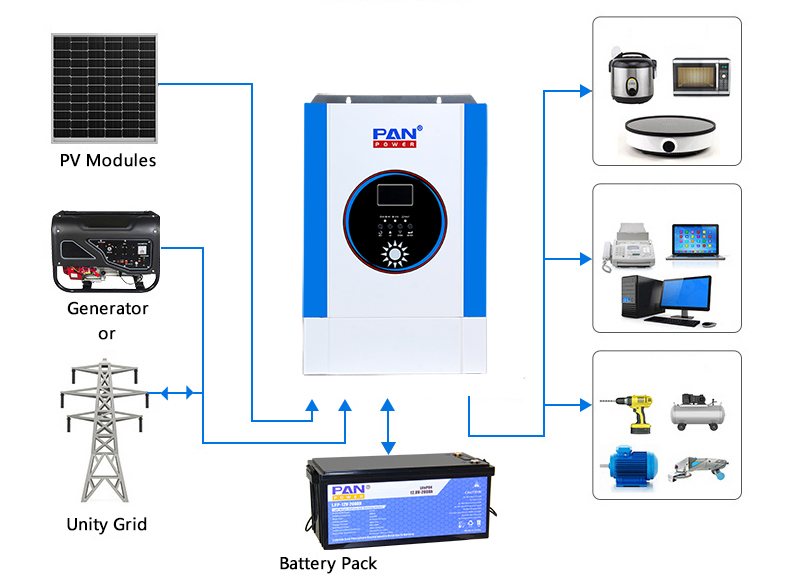

ApplicationThis is a 5.5kw multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power. High frequency and high efficiency made it widely used.
FAQQ: What’s the payment term of this 5.5kw on off grid inverter?
A: T/T, Western Union, Paypal, L/C.Q: Are your 5.5kva 5.5kw hybrid inverter pure sine wave output?
A: Yes, 5500Va 5500W inverter pure sine wave output.Q: Is this 5kw on off grid hybrid inverter?
A: Yes, 5.5kw on off grid hybrid inverter, can send extra power to grid.Q: What is the delivery time of this 5000w solar inverter?
A: Large inventory 5500 watts solar inverter fast delivery.Q: What is the shipping way of this 5kw hybrid solar inverter?
A: By Air, by Sea or by Express.Q: How to solve the 5.5kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
QJ-E series 11kw hybrid inverter is aimed at demanding uses in isolated installations that require higher power. It is a model suitable for working on 48V batteries of any technology. It offers up to 11000W inverter power output and allows us to connect panels to work in a hybrid way, with an efficiency similar to grid-connected solar inverters.
48V hybrid 11kw inverter can parallel up to 9 units.
11KW Inverter Max Parallel UP to 99000W
11KW Inverter supports 220V Single Phase Parallel,
11KW Inverter supports 380V 3-Phase Parallel.
-
PANPOWER QJ series 11kw pure sine wave solar inverter is a top high quality high frequency power inverter, built for running your whole house (small home), Business, RV System, Trailer, or Boat Application. It is also perfect for your off-grid system or on off grid system, and emergency backup supply.
-
Q: What’s the payment term of this hybrid 11kw inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Is this 11KW pure sine wave inverter?
A: Yes, 11kw / 11000w pure sine wave inverter.Q: Is this 11kw on off grid hybrid inverter?
A: This 11kw inverter can work as on off grid hybrid inverter, can also work as off grid hybrid inverter compatible with mains and generator input.
Q: What is the delivery time of this hybrid solar 11kva 11kw inverter?
A: Large inventory 11kw hybrid solar inverter fast delivery.
Q: What is the shipping way of this 11kw single phase inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 11kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Keywords:
11kW 48V On Off Grid Solar Hybrid Inverter
Affiliate Category:
Related Products
See more of our quality related products
Off grid 24VDC 220VAC 4000W 5KVA Solar Inverter
ECO series 4kw 4kva hybrid inverter is a powerful solar system device. The inverter has built-in 120A mppt charging technology, which can efficiently convert solar power and provide stable power supply for the pv system. At the same time, the inverter also has intelligent WIFI connection function, which can remotely monitor and control the system operation through mobile phones and other devices. In addition, the inverter supports RS232 communication interface, which can be connected with other devices to realize remote monitor. This solar inverter has a customizable appearance design and can meet the individual needs of different users. In order to enhance the connection capability, the inverter also adds an RS485 interface to facilitate connection with the BMS management system of lithium batteries. This series 4kw inverter and 4kw inverter can run without battery, providing reliable power conversion services for the home.
6kVA 6kw 48V 6000W off Grid Solar System Inverters
PANPOWER Off-Grid Solar Inverter 6kW 48VDC is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. The WiFi module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. This 6.2kw inverter can work with or without batteries, only use PV power to power home appliances.
10KW 10000w DC 48V Off Grid Hybrid Inverter
MAX 10KW 10.2KW DC 48V off grid hybrid inverter with low voltage input and 230VAC pure sine wave output. This inverter is designed with Dual PV In-Put. Two independent high-efficiency MPPT solar controller to achieve maximum power point tracking technology, the charge current is up to 150A. This innovative inverter seamlessly integrates solar energy storage, mains charging energy storage, and AC sine wave output.
11KW Off Grid Inverter 150A Double MPPT Input
MAX sereis 11kw hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. Built-in Two MPPT 11kW Hybrid Off Grid Solar Inverter, the 11kW inverter is with max 6 units parallel function, support single phase parallel up to be 66KW, also supply 3-phase parallel.
