Product Description
-
Induction
6KW 6.2KW on/off grid hybrid solar inverter can used for on off grid system to feed extra power to grid, off grid system without battery or with battery. This QJ-E series 6000W 6200WiInverter built in 120A MPPT solar charge controller, can maximum connect 7500W solar panel, max PV input reach 500VDC.
Main Features
*6kva / 6kw on off grid hybrid solar inverter
*Pure sine wave solar inverter
*Built-in high efficient MPPT solar charger
*Max PV strings voltage 500VDC
*Inverter can work without battery during daytime
*Auto restart while AC is recovering
*Optional WiFi monitory for IOS and Android
*Solar, Grid and Battery Energy complement each other, priority selectable
*Smart battery charge design to optimize battery life
*RS232, BMS/RS485, Dry Contact Communication interface
*Support lithium activation wake-up and cold start function
*Max 9 units in parallel to extend power
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
Model QJ-E-6.2KW QJ-E-6.2KW-B RATED POWER 6.2KVA/6.2KW 6.2KVA/6.2KW Parallel Function NO Yes, up to 6 units INPUT Voltage 220V/230V/240VAC Selectable Voltage Range 170-280 VAC (UPS); 90-280 VAC (Appliance) Frequency Range 50Hz/60Hz (Auto sensing) OUTPUT Rated Power 6200W(Battery Mode), 6500W(PV Mode) Output Voltage 220V/230V/240VAC± 5% Output Frequency 50Hz/60Hz ± 1% Waveform Pure sine wave Peak Power 12400VA Transfer Time 10ms typical (UPS); 20ms typical (Appliances) Overload Capacity Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads. Maximum Conversion Efficiency 98% GRID CONNECTED OPERATION Output Voltage 220V/230V/240VAC± 5% Feed Into Grid Voltage Range 195V~253V Feed Into Grid Voltage Range 49-51±1Hz/ 59-61±1Hz Nominal Output Current 26.9A Power Factor Range ＞0.99 BATTERY Battery Type AGM/Gel/Lithium Rated Battery Voltage 48Vdc Constant Charging Voltage (Adjustable) 56.4VDC Floating Charging Voltage (Adjustable) 54Vdc Overcharge Protection (Adjustable) 63Vdc SOLAR CHARGER & AC CHARGER Max. PV Array Open Circuit Voltage 500Vdc Max. PV Array Power 7500W Max PV Input Current & Number 27A*1 MPPT Tracking Range 60~500Vdc Recommend PV Voltage 300~400Vdc Max. PV Charging Current 120A Max. AC Charging Current 100A Max. Charge Current (PV+AC) 120A ENVIRONMENT Humidity 2% to 95% Relative Humidity (Non condensing) Operating Temperature -10° C to 50° C Storage Temperature -15° C to 60° C Noise ≤50db PHYSICAL Display LCD Monitor function Wifi module (optional) Communication function Yes, Can Communicate with Lithium Battery BMS Communication Interface RS485/RS232/Dry Contact Dimension, D x W x H (mm) 143*313*483 Net Weight(kg) 11.5 11.7 System Diagram

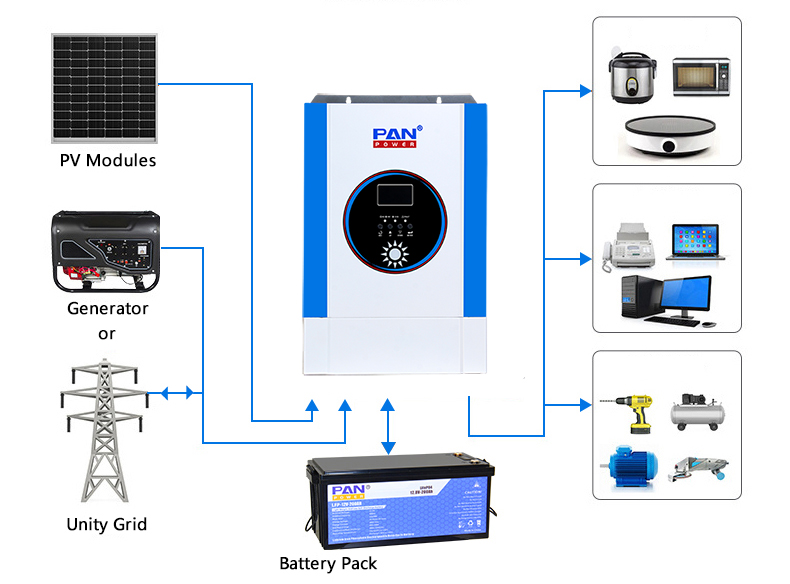

The 6kw inverter series is a pure sine wave high frequency solar inverter control all-in-one machine, which contains MPPT photovoltaic controller. User can use this 6kva inverter as an off grid inverter for storage battery energy, can also use this 6kw inverter as an on off grid hybrid inverter to send extra PV energy to public grid.

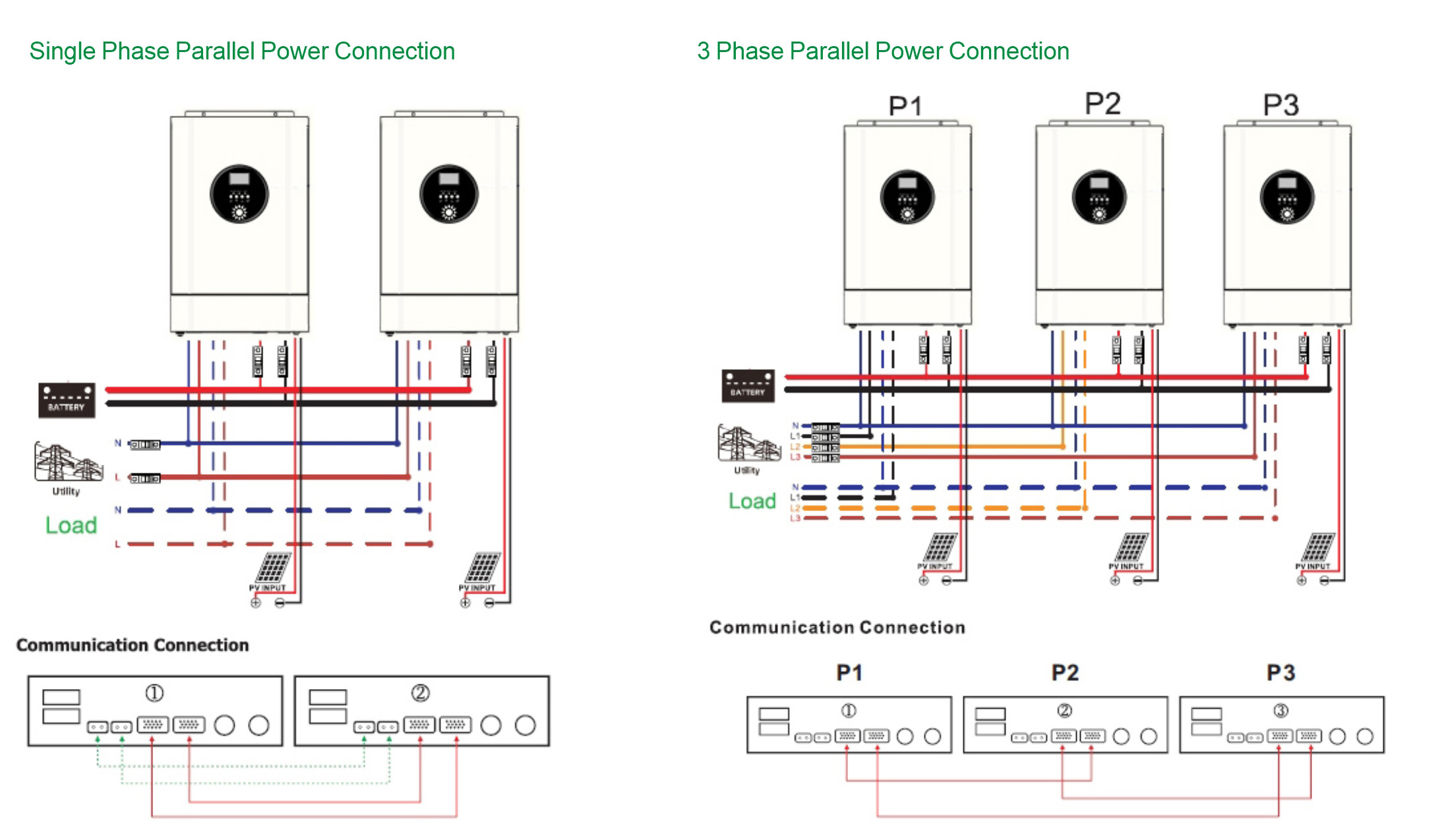

Parallel Functio
In practical applications, some users will add electrical appliances, and the solar system needs to be expanded. This QJ-E 6KW series fully considers the actual needs of users, designed to support a maximum up to 9 units in parallel, power can reach 55.8KW. At the same time, this 6000W solar inverter supports single-phase 220V parallel, and also supports three-phase 380V parallel. Perfectly match the power needs of different users.
Application
It is perfect backup power supply 6kw inverter for off-grid inverter system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
FAQ
Q: What’s the payment term of this 6kva on off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6kw hybrid inverter pure sine wave output?
A: Yes, 6000w 6200w inverter pure sine wave output.Q: Is this 6.2kw on off grid hybrid inverter?
A: Yes, 6.2kw 6.2kva on off grid hybrid inverter, can send extra power to grid.
Q: What is the delivery time of this 6000w solar inverter?
A: Large inventory 6000 watts solar inverter fast delivery.
Q: What is the shipping way of this 6kw hybrid solar inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 6.2kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily. -
Q: What’s the payment term of this 6kva on off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6kw hybrid inverter pure sine wave output?
A: Yes, 6000w 6200w inverter pure sine wave output.Q: Is this 6.2kw on off grid hybrid inverter?
A: Yes, 6.2kw 6.2kva on off grid hybrid inverter, can send extra power to grid.
Q: What is the delivery time of this 6000w solar inverter?
A: Large inventory 6000 watts solar inverter fast delivery.
Q: What is the shipping way of this 6kw hybrid solar inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 6.2kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
