Product Description
-
Induction
5.5KW/48V MPPT Solar Inverter Solar QJ-E Series is a 5500VA/5500W On Off Grid Solar Inverter with 100A MPPT Solar Charger Built in, 500VDC PV Input 220VAC 48V. Designed for 48V solar inverter configurations, it offers a high-quality energy solution with enhanced power output in PV mode. This 5kw hybrid inverter can work without battery, user can monitor this 5kw pure sine inverter with wifi module on phone app.
Main Features
*5.5kva/5.5kw on off grid hybrid solar inverter
*Pure sine wave solar inverter
*Built-in high efficient MPPT solar charger
*Max PV strings voltage 500VDC
*Inverter can work without battery during daytime
*Auto restart while AC is recovering
*Optional WiFi monitory for IOS and Android
*Solar, Grid and Battery Energy complement each other, priority selectable
*Smart battery charge design to optimize battery life
*RS232, BMS/RS485, Dry Contact Communication interface
*Support lithium activation wake-up and cold start function
*Max 9 units in parallel to extend power
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
Model
QJ-E-5.5KW
QJ-E-5.5KW-B
RATED POWER
5.5KVA/5.5KW
5.5KVA/5.5KW
Parallel Function
NO
Yes, up to 6 units
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
6200W(Battery Mode), 6500W(PV Mode)
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
11000VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads.
Maximum Conversion Efficiency
98%
GRID CONNECTED OPERATION
Output Voltage
220V/230V/240VAC± 5%
Feed Into Grid Voltage Range
195V~253V
Feed Into Grid Voltage Range
49-51±1Hz/ 59-61±1Hz
Nominal Output Current
23.9A
Power Factor Range
＞0.99
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
48Vdc
Constant Charging Voltage (Adjustable)
56.4VDC
Floating Charging Voltage (Adjustable)
54Vdc
Overcharge Protection (Adjustable)
63Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
500Vdc
Max. PV Array Power
7500W
Max PV Input Current & Number
27A*1
MPPT Tracking Range
60~500Vdc
Recommend PV Voltage
300~400Vdc
Max. PV Charging Current
100A
Max. AC Charging Current
100A
Max. Charge Current (PV+AC)
100A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication function
Yes, Can Communicate with Lithium Battery BMS
Communication Interface
RS485/RS232/Dry Contact
Dimension, D x W x H (mm)
143*313*483
Net Weight(kg)
10.5
10.7

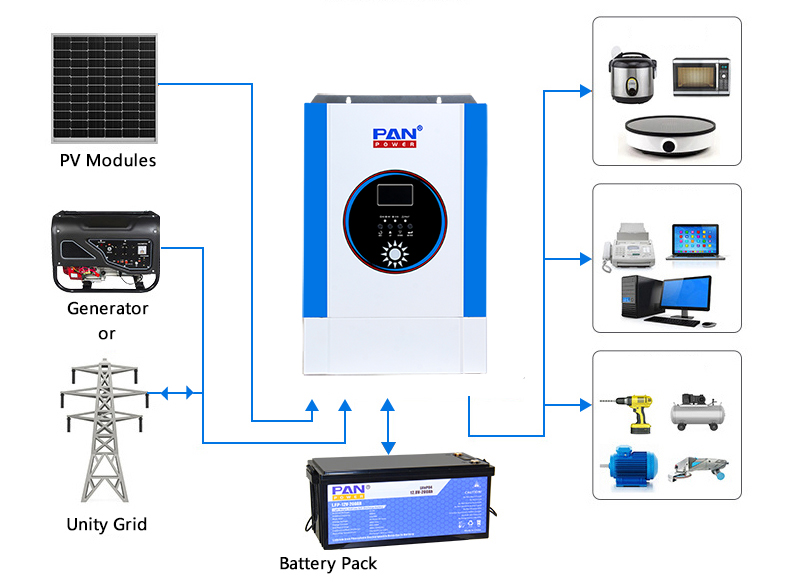

System Diagram
The 6kw inverter series is a pure sine wave high frequency solar inverter control all-in-one machine, which contains MPPT photovoltaic controller. User can use this 6kva inverter as an off grid inverter for storage battery energy, can also use this 6kw inverter as an on off grid hybrid inverter to send extra PV energy to public grid.

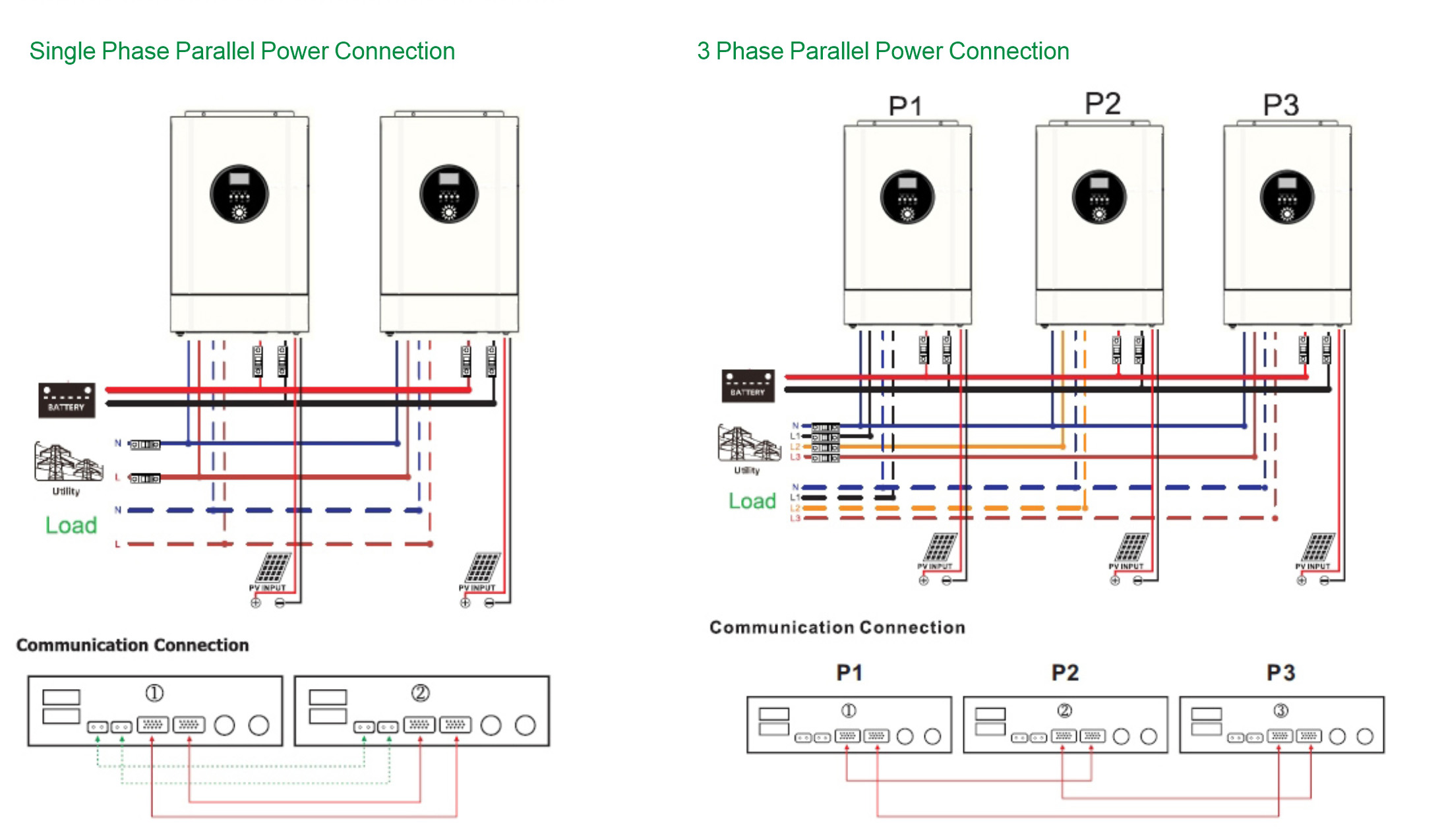

Parallel Function
In practical applications, some users will add electrical appliances, and the solar system needs to be expanded. This QJ-E 6KW series fully considers the actual needs of users, designed to support a maximum up to 9 units in parallel, power can reach 55.8KW. At the same time, this 6000W solar inverter supports single-phase 220V parallel, and also supports three-phase 380V parallel. Perfectly match the power needs of different users.
ApplicationIt is perfect backup power supply 6kw inverter for off-grid inverter system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
FAQQ: What’s the payment term of this 6kva on off grid inverter?
A: T/T, Western Union, Paypal, L/C.Q: Are your 6kw hybrid inverter pure sine wave output?
A: Yes, 6000w 6200w inverter pure sine wave output.Q: Is this 6.2kw on off grid hybrid inverter?
A: Yes, 6.2kw 6.2kva on off grid hybrid inverter, can send extra power to grid.Q: What is the delivery time of this 6000w solar inverter?
A: Large inventory 6000 watts solar inverter fast delivery.Q: What is the shipping way of this 6kw hybrid solar inverter?
A: By Air, by Sea or by Express.Q: How to solve the 6.2kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
5.5KW single phase solar inverter is a pure sine wave off-grid hybrid solar inverter with a built-in MPPT solar controller. This 5.5KW system can max connect 500V 6500W solar panel. Suitable for household usage of lighting, fans, fridge, tv, laptop etc. Efficiency up to 98%.
5.5KVA/5500W 100A Pure Sine Wave Solar Inverter Parallel Version Hybrid Inverter, This 5500W inverter supports parallel operation up to 9 units in 1-phase or 3-phase.
-
This is a 5.5kw multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power. High frequency and high efficiency made it widely used.
-
Q: What’s the payment term of this 5.5kw on off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 5.5kva 5.5kw hybrid inverter pure sine wave output?
A: Yes, 5500Va 5500W inverter pure sine wave output.Q: Is this 5kw on off grid hybrid inverter?
A: Yes, 5.5kw on off grid hybrid inverter, can send extra power to grid.
Q: What is the delivery time of this 5000w solar inverter?
A: Large inventory 5500 watts solar inverter fast delivery.
Q: What is the shipping way of this 5kw hybrid solar inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 5.5kw inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
