Product Description
-
Induction
This 5500w hybrid inverter is suitable for 48V sealed GEL/AGM lead-acid as well as Lithium batteries, with pre-defined charging programs for each type. QJ-B series is a 5500VA/5500W on ff Grid Solar Inverter, with 100A MPPT Solar Charger Built in, 450VDC PV Input 220VAC 48V.
Main Features
*5.5KW off grid hybrid solar inverter;
*Pure sine wave solar inverter;
*Built-in high efficient MPPT solar charger;
*Max PV strings voltage 500VDC;
*Max PV input power 7500W;
*Inverter can work without battery during daytime;
*Auto restart while AC is recovering;
*Optional WiFi monitory for IOS and Android;
*Solar, Grid and Battery Energy complement each other, priority selectable;
*Smart battery charge design to optimize battery life;
*RS232, BMS/RS485, Dry Contact Communication interface;
*Support lithium activation wake-up and cold start function;
*Max 9 units in parallel to extend power;
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
Model
QJ-5.5KW
QJ-5.5KW-B
RATED POWER
5.5KVA/5.5KW
5.5KVA/5.5KW
Parallel Function
NO
YES, up to 9 units
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
5500W(Battery Mode), 6500W(PV Mode)
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
11000VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads.
Maximum Conversion Efficiency
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
48Vdc
Constant Charging Voltage (Adjustable)
56.4VDC
Floating Charging Voltage (Adjustable)
54Vdc
Overcharge Protection (Adjustable)
63Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
500Vdc
Max. PV Array Power
7500W
Max PV Input Current & Number
27A*1
MPPT Tracking Range
60~500Vdc
Recommend PV Voltage
300~400Vdc
Max. PV Charging Current
100A
Max. AC Charging Current
100A
Max. Charge Current (PV+AC)
100A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication function
Yes, Can Communicate with Lithium Battery BMS
Communication Interface
RS485/RS232/Dry Contact
Dimension, D x W x H (mm)
143*313*483
Net Weight(kg)
10.5

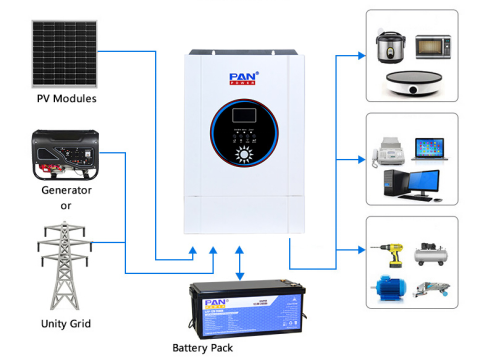

System Diagram
Pure sine wave solar Inverter 5500W, with wide PV input voltage range (60VDC - 500VDC), built-in 100A MPPT Solar Controller. It accept AC grid or AC generator input as AC power back, ensure uninterruptible power supply.

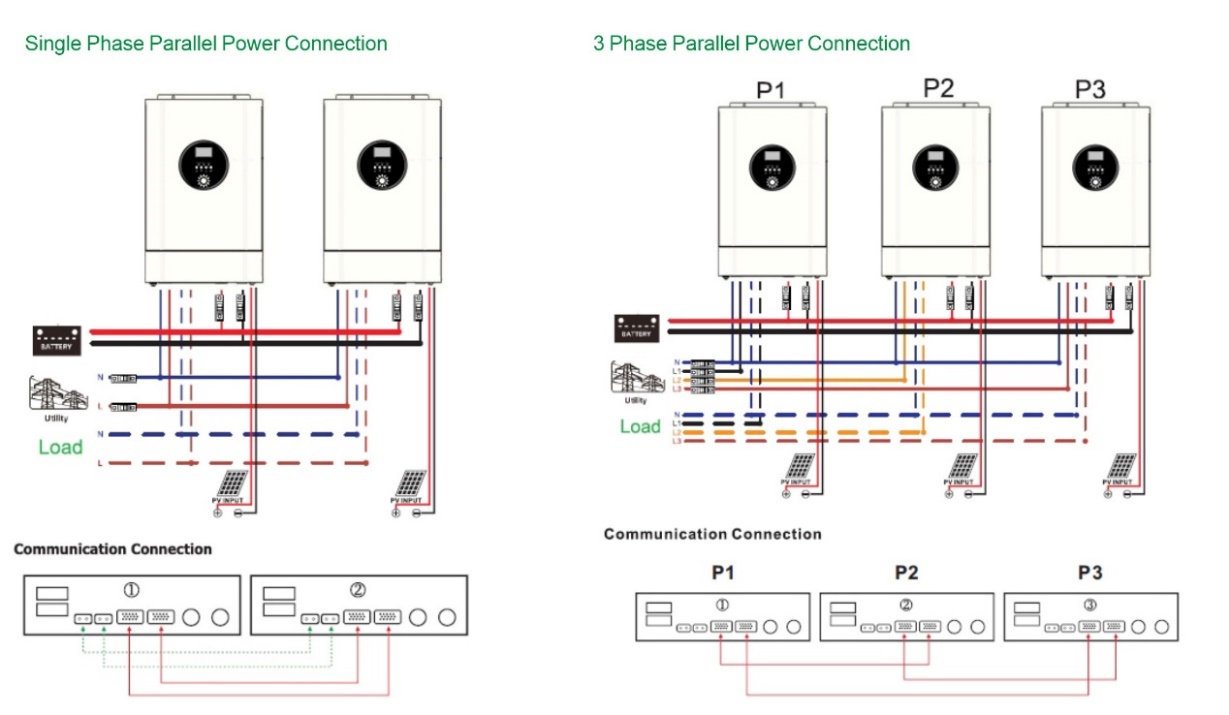

Parallel Function
Parallel Function Up To Maximum 9 Units: Enlarge More Loads.
5.5KW Inverter Max Parallel UP to 49500W
5.5KW Inverter supports 220V Single Phase Parallel, supports 380V 3-Phase Parallel.
Application
5.5KW hybrid inverter combines the work of a ups inverter and a battery inverter. The hybrid inverter increases energy resiliency by providing backup. This made this 5500 watts inverters widely used in various sensces.
FAQQ: What’s the payment term of this 5.5kw inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 5.5kw inverter pure sine wave output?
A: Yes, 5500w pure sine wave inverter.Q: Is this 5.5kw off grid hybrid inverter?
A: Yes, 5.5kva/5.5kw off grid hybrid inverter compatible with mains and generator input.Q: What is the delivery time of this 5.5kwsolar inverter?
A: Large inventory 5.5kw solar inverter fast delivery.Q: What is the shipping way of this 5.5kw single phase inverter?
A: By Air, by Sea or by Express.Q: How to solve the 5500 watts inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
*5.5KW off grid hybrid solar inverter;
*Pure sine wave solar inverter;
*Built-in high efficient MPPT solar charger;
*Max PV strings voltage 500VDC;
*Max PV input power 7500W;
*Inverter can work without battery during daytime;
*Auto restart while AC is recovering;
*Optional WiFi monitory for IOS and Android;
*Solar, Grid and Battery Energy complement each other, priority selectable;
*Smart battery charge design to optimize battery life;
*RS232, BMS/RS485, Dry Contact Communication interface;
*Support lithium activation wake-up and cold start function;
*Max 9 units in parallel to extend power;
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
-
Pure sine wave solar Inverter 5500W, with wide PV input voltage range (60VDC - 500VDC), built-in 100A MPPT Solar Controller. It accept AC grid or AC generator input as AC power back, ensure uninterruptible power supply.
Parallel Function Up To Maximum 9 Units: Enlarge More Loads.
5.5KW Inverter Max Parallel UP to 49500W
5.5KW Inverter supports 220V Single Phase Parallel, supports 380V 3-Phase Parallel. -
5.5KW hybrid inverter combines the work of a ups inverter and a battery inverter. The hybrid inverter increases energy resiliency by providing backup. This made this 5500 watts inverters widely used in various sensces.
-
Q: What’s the payment term of this 5.5kw inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 5.5kw inverter pure sine wave output?
A: Yes, 5500w pure sine wave inverter.Q: Is this 5.5kw off grid hybrid inverter?
A: Yes, 5.5kva/5.5kw off grid hybrid inverter compatible with mains and generator input.
Q: What is the delivery time of this 5.5kwsolar inverter?
A: Large inventory 5.5kw solar inverter fast delivery.
Q: What is the shipping way of this 5.5kw single phase inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 5500 watts inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
