Product Description
-
Induction
MAX-E series 10KW Pure Sine Wave Hybrid Inverter with 150Amp MPPT Charge Controller, Work with 48V Lead Acid and Lithium Battery. 48V 220V 230V 10200W load power to meet the needs of most households. Convenient installation. These inverters can work as hybrid on-off grid inverter, turn solar energy into usable energy.
Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Main Features
*On-off hybrid solar inverter
*Pure sine wave solar inverter
*Built-in max 150A MPPT solar charger
*Real Dual MPPT input
*Max PV voltage 500VDC
*MPPT range 90V~450VDC
*Inverter can work without battery during daytime
*Optional WiFi monitory for IOS and Android
*With dusk-proof kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
*Working status indicate with RGB lights
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
MODEL
MAX-E-10KW
PHASE
1—phase
Rated Output Power
10200W
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120~140VAC/180VAC
Acceptable Input Voltage Range
90~280VAC or 170~280VAC
Nominal operating frequency
50/60Hz
Surge power
20400VA
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER
Battery Type
Lead acid/Gel/Lithium
Nominal DC Voltage
48VDC
Maximum AC Charging Current
150A
Maximum PV Input Power
2*5500W
Number of MPPT Tracker/Input Current
2/27A
MPPT Range @operating Voltage
90VDC~450VDC
Max PV Array Open Circuit Voltage
500VDC
Maximum Solar Charging Current
150A
Maximum Charging Current (Solar to AC)
150A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Range@Operating Voltage
90VDC~450VDC
Number of MPPT Tracker/Input Current
2/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5V~253VAC
Nominal Output Current
44.3A
Power Factor
>0.99
Feed-in Grid Frequency Range
49-51±1Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)
98%
GENERAL
Dimension, D*W*H (MM)
110*310*420
Net Weight(KGS)
17.3
Optional accessories
Wifi Module
Operating Temperature
-10~50℃
System Diagram
This 10kw inverters take full account of the needs of end customers, it first meets user's power need, and then can convert the DC generated by photovoltaic panels into AC and send it to the grid. With excellent performance at the same time, have a full range of protection features, to maximize the benefits at the same time, greatly enhance the reliability of the product.

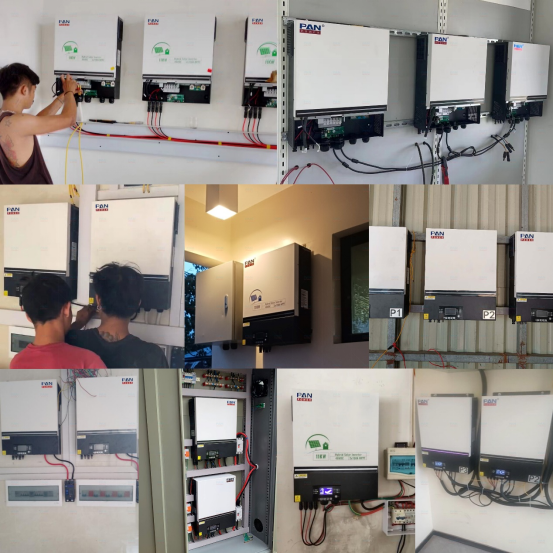

Application
This series of high power 10kw inverters are widely used in off grid solar system and on off grid solar system. Outputs high quality pure sine wave AC power meet the needs of most households. Convenient installation.
FAQQ: What’s the payment term of this 10kw on off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 10kw hybrid inverter pure sine wave output?
A: Yes, hybrid inverter 10000w output pure sine wave.Q: Is this 10kw on/off grid inverter?
A: Yes, true 10kw on-off grid inverter.
Q: What is the delivery time of this 10kw hybrid solar inverter?
A: Large inventory hybrid 10kw solar inverter fast delivery.
Q: What is the shipping way of this 10kw solar hybrid inverters?
A: By Air, by Sea or by Express.
Q: How to solve the inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
This series of high power 10kw inverters are widely used in off grid solar system and on off grid solar system. Outputs high quality pure sine wave AC power meet the needs of most households. Convenient installation.
-
Q: What’s the payment term of this 10kw on off grid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 10kw hybrid inverter pure sine wave output?
A: Yes, hybrid inverter 10000w output pure sine wave.Q: Is this 10kw on/off grid inverter?
A: Yes, true 10kw on-off grid inverter.
Q: What is the delivery time of this 10kw hybrid solar inverter?
A: Large inventory hybrid 10kw solar inverter fast delivery.
Q: What is the shipping way of this 10kw solar hybrid inverters?
A: By Air, by Sea or by Express.
Q: How to solve the inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
