Product Description
-
Induction
This 6000w solar inverter has a customizable appearance design and can meet the individual needs of different users. Such a 6kw hybrid inverter is a powerful solar system device is built-in 120A mppt charging current, which can efficiently convert solar power and provide stable power supply for the PV system. At the same time, the inverter also has intelligent WIFI connection function, which can remotely monitor and control the system operation through mobile phones App.
Main Features*6KW on-off grid hybrid inverter
*Pure sine wave solar inverter
*Built-in max 120A MPPT solar charger
*Max PV voltage 500VDC
*MPPT range 60V~450VDC
*Inverter can run without battery
*One-key restoration to factory setting
*Optional WiFi for IOS and Android
*Built-in anti-dusk kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
Datasheet
MODEL
ECO-E-6.2KW
PHASE
1—phase
Rated Output Power
6200W
Maximum PV Input Power
6200W
Maximum Solar Charging Current
120A
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120~140VAC/180VAC
Acceptable Input Voltage Range
90~280VAC or 170~280VAC
Maximum AC Input Current
40A
Nominal operating frequency
50/60Hz
Surge power
8200VA
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER
Battery Type
Lead acid/Gel/Lithium
Nominal DC Voltage
48VDC
Maximum Charging Current (Solar to AC)
120A
Maximum AC Charging Current
100A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Range@Operating Voltage
90VDC~450VDC
Number of MPPT Tracker/Input Current
1/22A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5V~253VAC
Nominal Output Current
27A
Power Factor
>0.99
Feed-in Grid Frequency Range
49-51±1Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)
98%
TWO LOAD OUTPUT POWER
Full Load
6200W
Maximum Main Load
6200W
Maximum Second Load (battery mode)
2067W
Main Load Cut Off Voltage
44VDC
Main Load Return Voltage
54VDC
GENERAL
Dimension, D*W*H (MM)
110*310*420
Net Weight(KGS)
9
Optional accessories
Wifi Module
Operating Temperature
-10~50℃

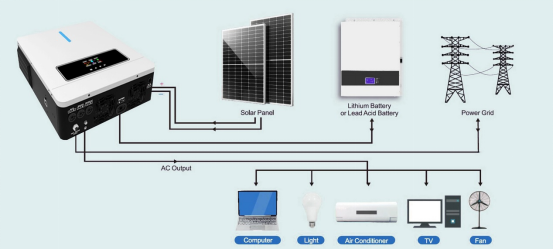

System Diagram
This is a 6000w inverter can be used to realize grid and off-grid operation. In order to enhance the connection capability, the inverter also adds an RS485 interface to facilitate connection with the BMS management system of lithium batteries. Even without batteries, the inverter can operate normally, providing reliable power conversion services for the
ApplicationThis series 6kw hybrid inverter is widely used, suitable for various scenes. The inverter can be use in off grid solar system, on/off grid solar system, Photovoltaic RV, Photovoltaic shed, suitable for home electric equipment and kinds of motors.
FAQQ: What’s the payment term of this 6000w hybrid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6000w inverter pure sine wave output?
A: Yes, 6000w true pure sine wave inverter.Q: Is this 6kw off grid inverter or on/off grid inverter?
A: this is 6kw hybrid inverter, can work as off grid inverter, can also work as on/off grid inverter.
Q: What is the delivery time of this 6.2kw hybrid solar inverter?
A: 6.2kw Hybrid Inverter in stock, fast delivery.
Q: What is the shipping way of these 6kw inverters?
A: By Air, by Sea or by Express.
Q: How to solve the inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
*6KW on-off grid hybrid inverter
*Pure sine wave solar inverter
*Built-in max 120A MPPT solar charger
*Max PV voltage 500VDC
*MPPT range 60V~450VDC
*Inverter can run without battery
*One-key restoration to factory setting
*Optional WiFi for IOS and Android
*Built-in anti-dusk kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
-
This is a 6000w inverter can be used to realize grid and off-grid operation. In order to enhance the connection capability, the inverter also adds an RS485 interface to facilitate connection with the BMS management system of lithium batteries. Even without batteries, the inverter can operate normally, providing reliable power conversion services for the
-
This series 6kw hybrid inverter is widely used, suitable for various scenes. The inverter can be use in off grid solar system, on/off grid solar system, Photovoltaic RV, Photovoltaic shed, suitable for home electric equipment and kinds of motors.
-
Q: What’s the payment term of this 6000w hybrid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6000w inverter pure sine wave output?
A: Yes, 6000w true pure sine wave inverter.Q: Is this 6kw off grid inverter or on/off grid inverter?
A: this is 6kw hybrid inverter, can work as off grid inverter, can also work as on/off grid inverter.
Q: What is the delivery time of this 6.2kw hybrid solar inverter?
A: 6.2kw Hybrid Inverter in stock, fast delivery.
Q: What is the shipping way of these 6kw inverters?
A: By Air, by Sea or by Express.
Q: How to solve the inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
