Product Description
-
Induction
PANPOWER factory provides 4kw hybrid solar inverter at low prices. Hybrid inverter on grid off grid 4kw home solar power inverter kit for solar panel system, which is widely used for home, office, water pump etc.
Main Features*On-off grid hybrid inverter
*Pure sine wave solar inverter
*Built-in max 120A MPPT solar charger
*Max PV voltage 500VDC
*MPPT range 60V~450VDC
*Inverter can run without battery
*One-key restoration to factory setting
*Optional WiFi for IOS and Android
*Built-in anti-dusk kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
Datasheet
MODEL
ECO-E-4.2KW
PHASE
1—phase
Rated Output Power
4200W
Maximum PV Input Power
6200W
Maximum Solar Charging Current
120A
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120~140VAC/180VAC
Acceptable Input Voltage Range
90~280VAC or 170~280VAC
Maximum AC Input Current
30A
Nominal operating frequency
50/60Hz
Surge power
8200VA
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER
Battery Type
Lead acid/Gel/Lithium
Nominal DC Voltage
48VDC
Maximum Charging Current (Solar to AC)
120A
Maximum AC Charging Current
100A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Range@Operating Voltage
90VDC~450VDC
Number of MPPT Tracker/Input Current
1/18A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5V~253VAC
Nominal Output Current
15.7A
Power Factor
>0.99
Feed-in Grid Frequency Range
49-51±1Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)
98%
TWO LOAD OUTPUT POWER
Full Load
4200W
Maximum Main Load
4200W
Maximum Second Load (battery mode)
1200W
Main Load Cut Off Voltage
22VDC
Main Load Return Voltage
27VDC
GENERAL
Dimension, D*W*H (MM)
110*310*420
Net Weight(KGS)
8
Optional accessories
Wifi Module
Operating Temperature
-10~50℃

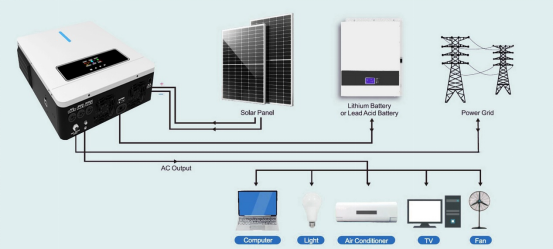

System Diagram
4KW 24V Hybrid Solar Inverter On/Off Grid Photovoltaic Inverter 230VAC MPPT 100A Solar Charge Controller With WiFi PV 60-500VDC. This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power.
ApplicationThis series 4kw hybrid inverter is widely used, suitable for various scenes. The inverter can be use in off grid solar system, on/off grid solar system, Photovoltaic RV, Photovoltaic shed, suitable for home electric equipment and kinds of motors.
FAQQ: What’s the payment term of this 4kw hybrid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Is this a 4000w pure sine wave inverter?
A: Yes, 4000w pure sine wave inverter.Q: Is this 4kw off grid inverter or 4kw on/off grid inverter?
A: this 4kw inverter is hybrid inverter, can work as off grid inverter, can also work as on/off grid inverter.
Q: What is the delivery time of this 4.2kw hybrid solar inverter?
A: 4.2kw Hybrid Inverter in stock, fast delivery.
Q: What is the shipping way of these 4kw inverters?
A: By Air, by Sea or by Express.
Q: How to solve the inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
*On-off grid hybrid inverter
*Pure sine wave solar inverter
*Built-in max 120A MPPT solar charger
*Max PV voltage 500VDC
*MPPT range 60V~450VDC
*Inverter can run without battery
*One-key restoration to factory setting
*Optional WiFi for IOS and Android
*Built-in anti-dusk kit for harsh environment
*Smart battery charge design to optimize battery life
*With RS485 interface for BMS communicate
*With dual output
-
4KW 24V Hybrid Solar Inverter On/Off Grid Photovoltaic Inverter 230VAC MPPT 100A Solar Charge Controller With WiFi PV 60-500VDC. This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power.
-
This series 4kw hybrid inverter is widely used, suitable for various scenes. The inverter can be use in off grid solar system, on/off grid solar system, Photovoltaic RV, Photovoltaic shed, suitable for home electric equipment and kinds of motors.
-
Q: What’s the payment term of this 4kw hybrid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Is this a 4000w pure sine wave inverter?
A: Yes, 4000w pure sine wave inverter.Q: Is this 4kw off grid inverter or 4kw on/off grid inverter?
A: this 4kw inverter is hybrid inverter, can work as off grid inverter, can also work as on/off grid inverter.
Q: What is the delivery time of this 4.2kw hybrid solar inverter?
A: 4.2kw Hybrid Inverter in stock, fast delivery.
Q: What is the shipping way of these 4kw inverters?
A: By Air, by Sea or by Express.
Q: How to solve the inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
