Product Description
-
Induction
11KW 48V Hybrid Solar Inverter 220VAC Off Grid Tie Inverter Pure Sine Built-in 150A MPPT Solar Charger with Dual PV Input. This 11KVA inverter supports remote upgrade to get the latest functions. It is compatible with lead-acid, GEL, Lithium Ion and LifePO4 batteries. It is a powerful 11KW inverter designed for home energy storage and off-grid solar solutions.
Main Features
*11KVA / 11KW off grid hybrid solar inverter;*Pure sine wave solar inverter;
*Rated output power inverter 11KW;
*Built-in high efficient MPPT solar charger;
*Max PV strings voltage 500VDC;
*Max PV input power 11KW;
*Inverter can work without battery during daytime;
*Auto restart while AC is recovering;
*Optional WiFi monitory for IOS and Android;
*Solar, Grid and Battery Energy complement each other, priority selectable;
*Smart battery charge design to optimize battery life;
*RS232, BMS/RS485, Dry Contact Communication interface;
*Support lithium activation wake-up and cold start function;
*Max 9 units in parallel to extend power;
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc;
*Support remote upgrade.
Datasheet
Model
QJ-11KW
QJ-11KW-B
RATED POWER
11KVA/11KW
11KVA/11KW
Parallel Function
NO
YES, up to 9 units
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
5500W(Battery Mode), 6500W(PV Mode)
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
22000VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads.
Maximum Conversion Efficiency
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
48Vdc
Constant Charging Voltage (Adjustable)
56.4VDC
Floating Charging Voltage (Adjustable)
54Vdc
Overcharge Protection (Adjustable)
63Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
500Vdc
Max. PV Array Power
5500W*2 (Dual MPPT)
Max PV Input Current & Number
18A*2
MPPT Tracking Range
90~500Vdc
Recommend PV Voltage
300~400Vdc
Max. PV Charging Current
150A
Max. AC Charging Current
150A
Max. Charge Current (PV+AC)
150A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication function
Yes, Can Communicate with Lithium Battery BMS
Communication Interface
RS485/RS232/Dry Contact
Dimension, D x W x H (mm)
150*550*570
Net Weight(kg)
19

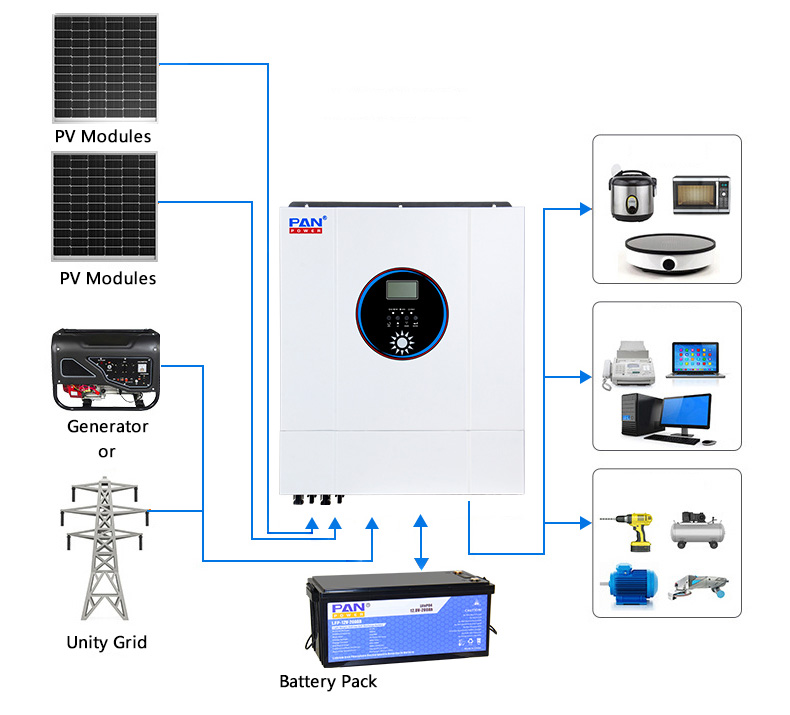

System Diagram
11KW Solar Hybrid Inverter with 2 MPPT Input 48V 150A Built in WIFI PV Charger Pure Sine Wave Output 230VAC. The largest single-phase inverter in the market is 11000W PV Input and 11000W AC output. This 11KW inverter is with two independent PV input, compatible with lead-acid, GEL, Lithium Ion and LifePO4 batteries.

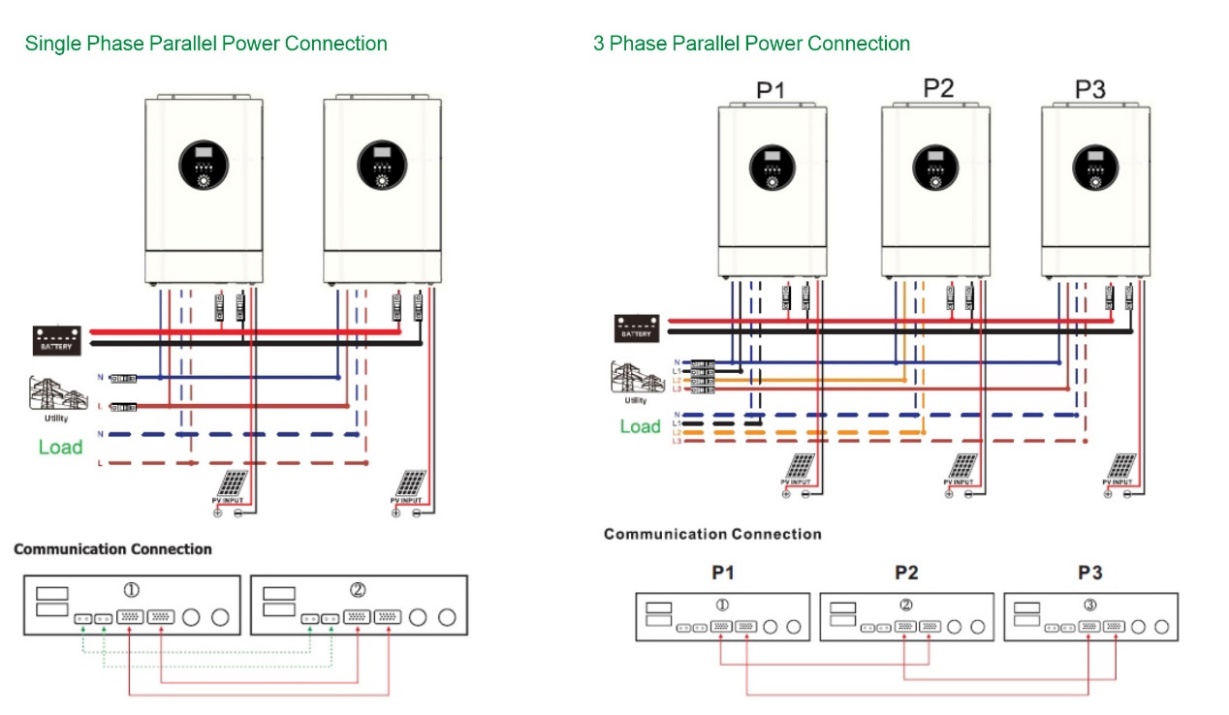

Parallel Function
Parallel Operation Hybrid Inverter 11kw Solar Inverter 48V with MPPT.
11KW Parallel Function Up To Maximum 9 Units: Enlarge More Loads.
11KW Inverter Max Parallel UP to 99000W.
11KW Inverter supports 220V Single Phase Parallel, supports 380V 3-Phase Parallel.
ApplicationThis is a multi-functional 11kw inverter/charger, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in various application scenarios.
FAQQ: What’s the payment term of this 11 hybrid inverter?
A: T/T, Western Union, Paypal, L/C.Q: Are your 11kw inverter pure sine wave output?
A: Yes, 11kva /11kw pure sine wave inverter.Q: Is this 11kw off grid hybrid inverter?
A: Yes, 11kw off grid hybrid inverter compatible with mains and generator input.Q: Can is 11kw inverter used in parallel?
A: Yes, 11kw inverter with parallel.
This inverter can be used in single phase 220V parallel and three phase 380V in parallel.Q: What is the delivery time of this 11kw solar inverter?
A: Large inventory 11kw solar inverter fast delivery.Q: What is the shipping way of this 11kw single phase inverter?
A: By Air, by Sea or by Express.Q: How to solve the 11000 watts inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.Download
-
-
11KW Solar Hybrid Inverter with 2 MPPT Input 48V 150A Built in WIFI PV Charger Pure Sine Wave Output 230VAC. The largest single-phase inverter in the market is 11000W PV Input and 11000W AC output. This 11KW inverter is with two independent PV input, compatible with lead-acid, GEL, Lithium Ion and LifePO4 batteries.
Parallel Operation Hybrid Inverter 11kw Solar Inverter 48V with MPPT.
11KW Parallel Function Up To Maximum 9 Units: Enlarge More Loads.
11KW Inverter Max Parallel UP to 99000W.
11KW Inverter supports 220V Single Phase Parallel, supports 380V 3-Phase Parallel. -
This is a multi-functional 11kw inverter/charger, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in various application scenarios.
-
Q: What’s the payment term of this 11 hybrid inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 11kw inverter pure sine wave output?
A: Yes, 11kva /11kw pure sine wave inverter.Q: Is this 11kw off grid hybrid inverter?
A: Yes, 11kw off grid hybrid inverter compatible with mains and generator input.Q: Can is 11kw inverter used in parallel?
A: Yes, 11kw inverter with parallel.This inverter can be used in single phase 220V parallel and three phase 380V in parallel.
Q: What is the delivery time of this 11kw solar inverter?
A: Large inventory 11kw solar inverter fast delivery.
Q: What is the shipping way of this 11kw single phase inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 11000 watts inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
