Product Description
-
Induction
6000W best MPPT Single Phase 48V Hybrid Solar Inverter, designed for efficient energy conversion and reliability in off-grid solar system. Off grid hybrid solar inverter with built in MPPT charge controller This 6kw off grid solar inverter is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger.
Main Features
*6KW off grid hybrid solar inverter;
*Pure sine wave solar inverter;
*Rated output power 6200W(Battery Mode), 6500W(PV Mode);
*Built-in high efficient MPPT solar charger;
*Max PV strings voltage 500VDC;
*Max PV input power 7500W;
*Inverter can work without battery during daytime;
*Auto restart while AC is recovering;
*Optional WiFi monitory for IOS and Android;
*Solar, Grid and Battery Energy complement each other, priority selectable;
*Smart battery charge design to optimize battery life;
*RS232, BMS/RS485, Dry Contact Communication interface;
*Support lithium activation wake-up and cold start function;
*Max 9 units in parallel to extend power;
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
Datasheet
Model
QJ-6.2KW
QJ-6.2KW-B
RATED POWER
6.2KVA/6.2KW
6.2KVA/6.2KW
Parallel Function
NO
YES, up to 9 units
INPUT
Voltage
220V/230V/240VAC
Selectable Voltage Range
170-280 VAC (UPS); 90-280 VAC (Appliance)
Frequency Range
50Hz/60Hz (Auto sensing)
OUTPUT
Rated Power
5500W(Battery Mode), 6500W(PV Mode)
Output Voltage
220V/230V/240VAC± 5%
Output Frequency
50Hz/60Hz ± 1%
Waveform
Pure sine wave
Peak Power
12400VA
Transfer Time
10ms typical (UPS); 20ms typical (Appliances)
Overload Capacity
Battery mode 11s@105%~150% loads, 2s@150%~200% loads,400ms@＞200% loads.
Maximum Conversion Efficiency
98%
BATTERY
Battery Type
AGM/Gel/Lithium
Rated Battery Voltage
48Vdc
Constant Charging Voltage (Adjustable)
56.4VDC
Floating Charging Voltage (Adjustable)
54Vdc
Overcharge Protection (Adjustable)
63Vdc
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage
500Vdc
Max. PV Array Power
7500W
Max PV Input Current & Number
27A*1
MPPT Tracking Range
60~500Vdc
Recommend PV Voltage
300~400Vdc
Max. PV Charging Current
120A
Max. AC Charging Current
100A
Max. Charge Current (PV+AC)
120A
ENVIRONMENT
Humidity
2% to 95% Relative Humidity (Non condensing)
Operating Temperature
-10° C to 50° C
Storage Temperature
-15° C to 60° C
Noise
≤50db
PHYSICAL
Display
LCD
Monitor function
Wifi module (optional)
Communication function
Yes, Can Communicate with Lithium Battery BMS
Communication Interface
RS485/RS232/Dry Contact
Dimension, D x W x H (mm)
143*313*483
Net Weight(kg)
11.7

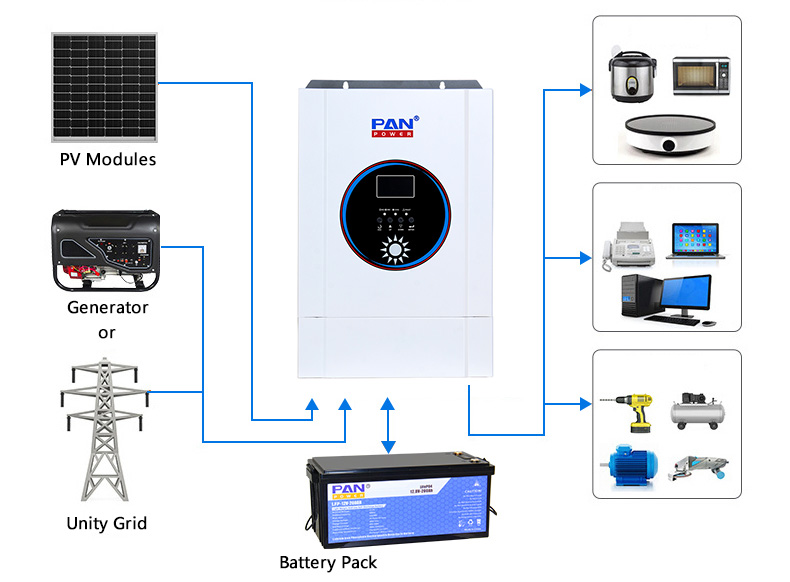

System Diagram
It is a 48Vdc 220Vac 6KW 6.2KW single phase solar inverter. Programmable supply priority for PV, battery or grid, User-adjustable charge current and voltage. It is a perfect backup power supply 6kw off grid hybrid inverter for 6Kw off-grid system like household appliances.

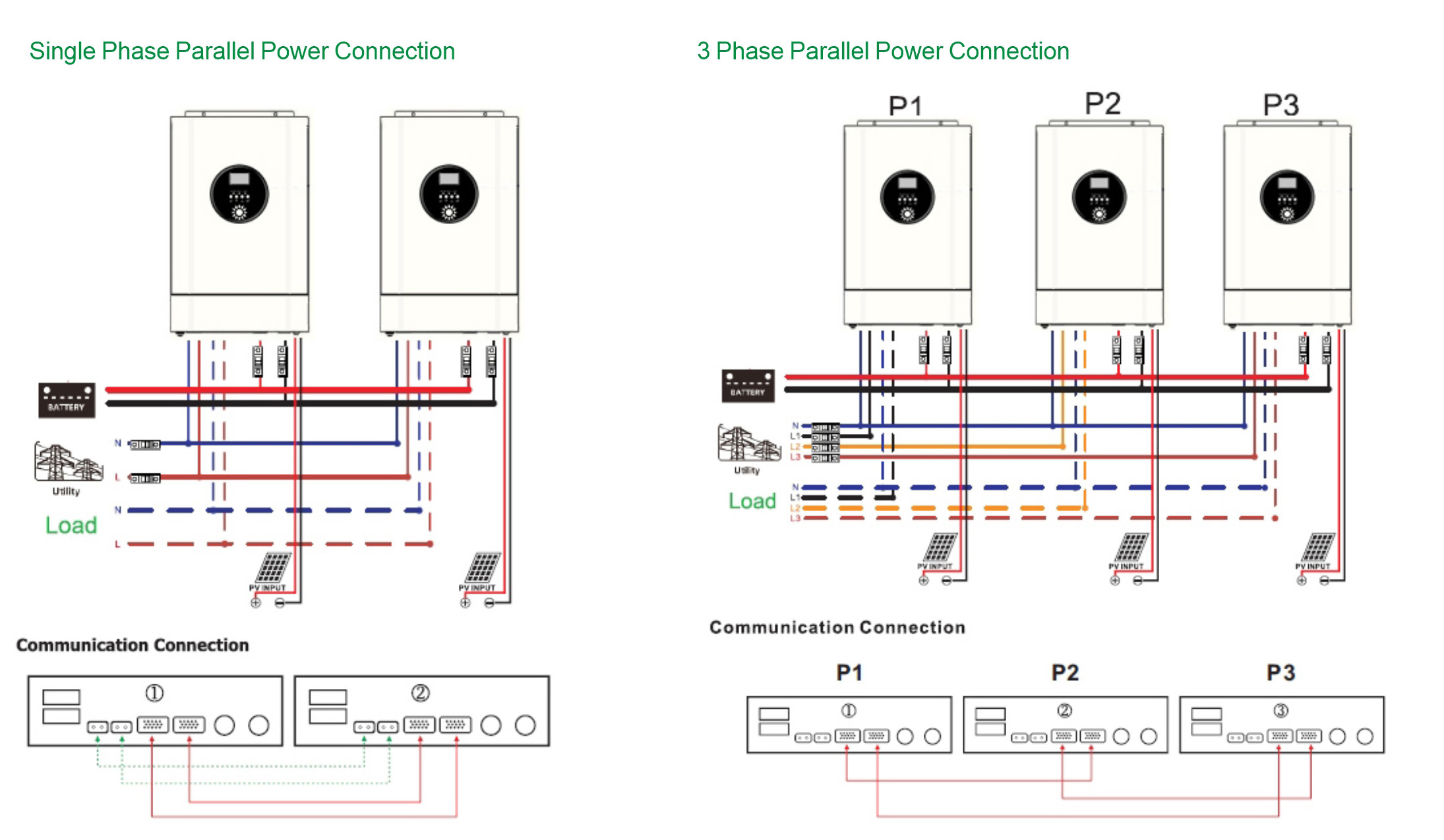

Parallel Function
Parallel Function Up To Maximum 9 Units: Enlarge More Loads.
6.2KW Inverter Max Parallel UP to 55800W
6KW Inverter supports 220V Single Phase Parallel, supports 380V 3-Phase Parallel.
ApplicationIt is perfect backup power supply 6kw inverter for off-grid inverter system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
FAQQ: What’s the payment term of this 6kw inverter?
A: T/T, Western Union, Paypal, L/C.Q: Are your 6kw inverter pure sine wave output?
A: Yes, 6200w pure sine wave inverter.Q: Is this 6kw off grid hybrid inverter?
A: Yes, 6.2kw off grid hybrid inverter compatible with mains and generator input.Q: What is the delivery time of this 6.2kw solar inverter?
A: Large inventory 6.2kw solar inverter fast delivery.Q: What is the shipping way of this 6kw single phase inverter?
A: By Air, by Sea or by Express.Q: How to solve the 6200 watts inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Download
-
*6KW off grid hybrid solar inverter;
*Pure sine wave solar inverter;
*Rated output power 6200W(Battery Mode), 6500W(PV Mode);
*Built-in high efficient MPPT solar charger;
*Max PV strings voltage 500VDC;
*Max PV input power 7500W;
*Inverter can work without battery during daytime;
*Auto restart while AC is recovering;
*Optional WiFi monitory for IOS and Android;
*Solar, Grid and Battery Energy complement each other, priority selectable;
*Smart battery charge design to optimize battery life;
*RS232, BMS/RS485, Dry Contact Communication interface;
*Support lithium activation wake-up and cold start function;
*Max 9 units in parallel to extend power;
*AC and PV charge voltage adjustable, can meet different types battery charge requirement
*Protection for overload, over temperature, short-circuit, battery Low/high etc.
-
-
It is a 48Vdc 220Vac 6KW 6.2KW single phase solar inverter. Programmable supply priority for PV, battery or grid, User-adjustable charge current and voltage. It is a perfect backup power supply 6kw off grid hybrid inverter for 6Kw off-grid system like household appliances.
Parallel Function Up To Maximum 9 Units: Enlarge More Loads.
6.2KW Inverter Max Parallel UP to 55800W
6KW Inverter supports 220V Single Phase Parallel, supports 380V 3-Phase Parallel. -
It is perfect backup power supply 6kw inverter for off-grid inverter system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
-
Q: What’s the payment term of this 6kw inverter?
A: T/T, Western Union, Paypal, L/C.
Q: Are your 6kw inverter pure sine wave output?
A: Yes, 6200w pure sine wave inverter.Q: Is this 6kw off grid hybrid inverter?
A: Yes, 6.2kw off grid hybrid inverter compatible with mains and generator input.
Q: What is the delivery time of this 6.2kw solar inverter?
A: Large inventory 6.2kw solar inverter fast delivery.
Q: What is the shipping way of this 6kw single phase inverter?
A: By Air, by Sea or by Express.
Q: How to solve the 6200 watts inverter technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
